Camshaft Timing Chain, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Audi S4, 2020 Audi A4, 2019 Audi S4, 2019 Audi A4, and 2018 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

CAUTION:

There is a risk of damaging the threads.

The control valve has left-hand threads.

-- Remove the left and right control valves using the Assembly Tool -1- in the direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Depending On The Version Of The Control Valve Use One Of The Listed Tools:

Central Valve Assembly Tool:T10352
Central Valve Assembly Tool:T10352/1
Assembly Tool :T10352/2
Assembly Tool:T10352/3
Assembly Tool:T10352/4

-- To do so counterhold on the vibration damper with the :T40263 , :T40314 and the 24 mm socket.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 through 6-.

Fig 1: Loosening Sequence Of Control Valve

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of damaging the bearing bracket.

Carefully remove the bearing bracket without tilting it.

-- Remove the bearing mount.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying due to a skipping camshaft timing chain.

Turn the crankshaft only in direction of engine rotation -arrow-.

-- Turn the crankshaft using the :T40263 , :T40314 and the 24 mm socket until the vibration damper is at "TDC".

The markings -3- from the camshaft chain sprockets -2 and 4- must point upward respectively.

Courtesy of AUDI OF AMERICA, LLC
The notch -arrow- on the vibration damper -1- and the arrow marking -5- on the lower timing chain cover must be align.

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REPLACING .

-- Check the "TDC point" again.

-- Press the tension spring wire clip in the direction of -arrow- and secure it with a :T40011 .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the guide pin -1- and the chain tensioner -2-.

-- Remove the oil pump chain from the three-layer chain sprocket, pull forward and place at the bottom of the oil pump chain sprocket.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Install the :T40243 on the cylinder head -lower arrows-.

Fig 2: Identifying Lever T40243 -Arrows-, Installation

Courtesy of AUDI OF AMERICA, LLC

-- Press the chain tensioner circlip -1- together and hold it.

-- Slowly press and hold the :T40243 in the direction of -arrow-.

This will push back the chain tensioner.

NOTE:

The chain tensioner is lubricated with oil and can only be pushed back slowly by applying constant pressure.

-- Lock the chain tensioner with the :T40267 .

Fig 3: Securing Chain Tensioner With T40267

Courtesy of AUDI OF AMERICA, LLC

-- Remove the :T40243 .

-- Install the :T40271/2 on the cylinder head.

Courtesy of AUDI OF AMERICA, LLC

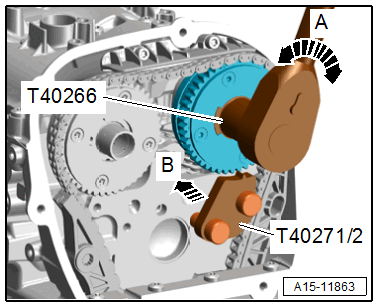

-- Push the camshaft positioning tool in the splines of the chain sprocket in direction of -arrow B-.

-- If required, turn the intake camshaft with the Adapter:T40266 or Adapter:T10567 slightly back and forth in direction of -A arrows-.

-- Bolt the :T40271/1 to the cylinder head.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The help of a second technician is necessary for the following step.

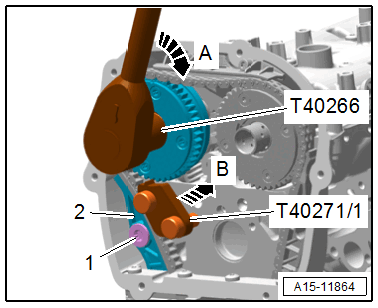

-- Hold the exhaust camshaft in place using the :T40266 or :T10567 . Remove the guide pin -1- and remove the tensioning rail -2- downward.

-- Turn the exhaust camshaft clockwise in direction of -arrow A- again until the Camshaft Locks:T40271/1 can be pushed in the chain sprocket splines in direction of -arrow B-.

-- Remove bolts -arrows- and remove guide rail -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the guide pin -1- and the guide rail -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the camshaft timing chain from the camshaft sprockets and remove downward.

CAUTION:

Risk of damaging valves and piston crowns.

Do not turn the crankshaft if the camshaft timing chain has been removed.
