Camshaft Timing Chain, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Audi S4, 2020 Audi A4, 2019 Audi S4, 2019 Audi A4, and 2018 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
GWWA15-11718Courtesy of AUDI OF AMERICA, LLC

Requirements:

-- Engage the camshaft timing chain with the painted links -arrows- on the camshaft pins as shown.

Fig 1: Camshaft Timing Chain And Camshaft Sprocket
GWWN15-10944Courtesy of AUDI OF AMERICA, LLC

-- Camshaft timing chain on intake camshaft; mount the exhaust camshaft and the three-layer chain sprocket.

Fig 2: Camshaft Timing Chain And Intake Camshaft
GWWN15-10952Courtesy of AUDI OF AMERICA, LLC

-- Insert the guide rail -2- and tighten the guide pin -1-.

GWWA15-11717Courtesy of AUDI OF AMERICA, LLC

-- Insert the guide rail -1- and tighten the bolts -arrows-.

GWWA15-11865Courtesy of AUDI OF AMERICA, LLC
NOTE:

The help of a second technician is necessary for the following step.

GWWA15-11867Courtesy of AUDI OF AMERICA, LLC

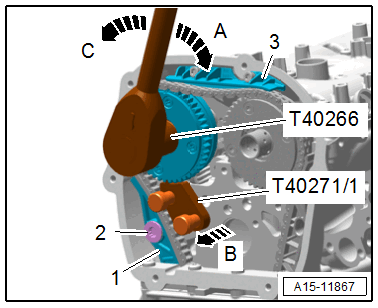

-- Reduce the pretension of the exhaust camshaft using the :T40266  or :T10567  in the direction of -arrow A- and pull the :T40271/1  off the chain sprocket splines in direction of -arrow B-.

-- Remove the exhaust camshaft in the direction of -arrow C- until the timing chain touches the guide rail -3-.

-- Hold the camshaft in this position, insert the tensioning rail -1- and tighten the guide pin -2-.

-- Remove the :T40271/1  .

-- Reduce the intake camshaft pretension using the :T40266  or :T10567  in the direction of -arrow A-, pull the :T40271/2  off the chain sprocket splines in direction of -arrow B- and bring the camshaft into its resting position.

GWWA15-11868Courtesy of AUDI OF AMERICA, LLC

-- Remove the :T40271/2  .

-- Install the screws -arrows- and tighten. Tightening specification -item 4-  OVERVIEW - CYLINDER HEAD - List Item:Bolt.

Fig 3: Identifying Bolts
GWWA15-11390Courtesy of AUDI OF AMERICA, LLC

-- Coat the holes -arrows- with engine oil.

GWWA15-11798Courtesy of AUDI OF AMERICA, LLC

-- Check if the adapter sleeve -1- is installed.

Fig 4: Loosening Sequence Of Control Valve
GWWA15-11860Courtesy of AUDI OF AMERICA, LLC
WARNING:

Risk of damaging the bearing bracket.

  • Carefully mount the bearing bracket without tilting it.

-- Attach the bearing mount and install the bolts -1 to 6- all the way by hand.

-- Remove the :T40267  .

Fig 5: Securing Chain Tensioner With T40267
GWWA15-11392Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bearing bracket bolts. Refer to Figure.

-- Install the oil pump chain.

Fig 6: Identifying Chain Tensioner
GWWN15-10947Courtesy of AUDI OF AMERICA, LLC

-- Insert the chain tensioner -2- and tighten the guide pin -1-.

-- Remove the :T40011  . At the same time wire clip must make contact in the opening on the oil pan upper section -arrow-.

-- Checking Adjustment:

Fig 7: Identifying Painted Chain Links Must Line Up With Markings On Chain Sprockets
GWWN15-10975Courtesy of AUDI OF AMERICA, LLC

-- Install the control valves -item  ) OVERVIEW - CAMSHAFT TIMING CHAINS - CONTROL VALVE.

Fig 8: Identifying Assembly Tool - Turning Over Tool T10531/3
GWWN15-10976Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of destroying due to a skipping camshaft timing chain.

  • Only turn the crankshaft in the direction of engine rotation (clockwise).

Risk of damaging the valves and piston crowns after working on valvetrain.

  • To ensure that the vales do not make contact when starting, carefully rotate the engine at least two full revolutions.

-- Install the :T10531/4  and the :T10531/3  .

-- Turn the engine twice in the direction of engine rotation.

NOTE:

Due to the ratio, the painted chain links no longer match up after the engine has been turned.

-- Remove the knurled nut and the turning over tool.

Further installation is performed in reverse order of removal, while noting the following:

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REPLACING .

-- Install the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- If work is performed on the chain drive, perform the "01 - mechanical engine, functions" listed adaptation. Refer to Vehicle Diagnostic Tester.
