Transmission, Transporting

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, 2019 Audi A5 Quattro, and 2019 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Shop Crane :VAS6100
Lifting Tackle :3033
Hook And Support Tool :3311 with Hook And Support Tool - Bolt :3311/1
Retaining Strap :T40155

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the transmission by mixing ATF and transmission fluid (MTF) through the same bleeder.

The transmission is filled with ATF and MTF transmission fluid, the transmission can only be tilted a maximum of 15° in lateral and longitudinal direction.
If more of an incline is needed, then the ATF and MTF transmission fluids must be drained.
Draining the ATF. Refer to ATF, DRAINING AND FILLING [7-SPEED DUAL CLUTCH TRANSMISSION] / TRANSMISSION FLUID, DRAINING AND FILLING [7-SPEED DUAL CLUTCH TRANSMISSION] / ATF LEVEL, CHECKING [7-SPEED DUAL CLUTCH TRANSMISSION] .
Draining the transmission fluid. Refer to TRANSMISSION FLUID, DRAINING AND FILLING [7-SPEED DUAL CLUTCH TRANSMISSION] / ATF LEVEL, CHECKING [7-SPEED DUAL CLUTCH TRANSMISSION] .

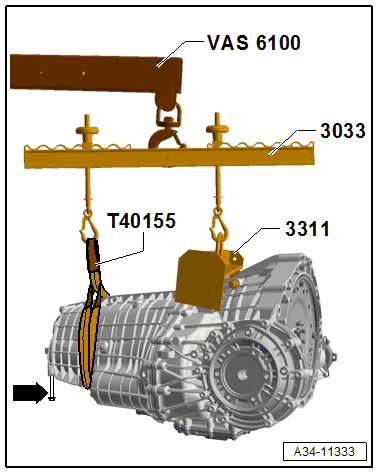

-- Secure the transmission on the :3311 (use new longer bolts :3311/1 ).

Courtesy of AUDI OF AMERICA, LLC

-- Guide the :T40155 around the transmission and secure on the :3033 .

Courtesy of AUDI OF AMERICA, LLC

-- Secure the :T40155 on the transmission end with a commercially available M10 bolt -arrow-.

-- Using the :3033 and the :VAS6100 the transmission can be lifted and transported.

NOTE:

To prevent damaging the transmission fluid pump -A- when placing the transmission on the oil pan -C-, for support a commercially available M10 bolt approximately 100 mm long -B- must be installed on the rear of the transmission housing.

Courtesy of AUDI OF AMERICA, LLC
