Overview - Gear Set, Fwd Vehicles: Notes

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, 2019 Audi A5 Quattro, and 2019 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

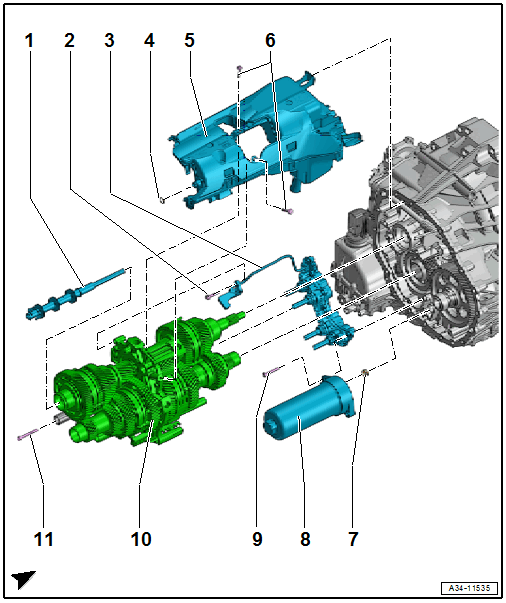

Fig 1: Exploded View Of Gear Set, FWD Vehicles (0CK, 0CJA, 0CLA, 0DN & 0DPA)

Courtesy of AUDI OF AMERICA, LLC

Oil Pipe
Bolt
- 3 Nm + 90°
- Always replace
- M6 X 30
Gear Positioner With:
- Transmission Input Speed Sensor 1 -G632-
- Transmission Input Speed Sensor 2 -G612-
- Gear Position Distance Sensor 1 -G487-
- Gear Position Distance Sensor 2 -G488-
- Gear Position Distance Sensor 3 -G489-
- Gear Position Distance Sensor 4 -G490-
- Removing an installing. Refer to GEAR ACTUATOR MODULE AND HYDRAULIC PRESSURE RESERVOIR, REMOVING AND INSTALLING .
Seal
- Always replace
Oil Pan
- Always replace
Bolt
- 3 Nm + 90°
- Always replace
- M6 X 30
Seal
- Always replace
Hydraulic Pressure Reservoir
- Observe the safety notes. Refer to ATF PUMP, DEACTIVATING AND DRAINING THE HYDRAULIC PUMP RESERVOIR .
- Removing an installing. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Disposal. Refer to HYDRAULIC PRESSURE RESERVOIR, DISPOSING .
Bolts
- 3 Nm + 90°
- Always replace
- M6 X 30
Gear Set
- Removing and installing. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
Bolts
- 6 Nm + 30°
- Gearshift rail gear positioner module
- M6 X 50
