Securing On Engine And Transmission Holder: Procedure
-- Assemble the :T40206 as follows:
- The connection area -arrow A- points upward.
- The lettering "B" points upward -arrow B-.
-- Place the :T40206/3 on the : T40206 .
-- Make an additional 12 mm hole -arrow- in the :T40206 .
-- Install The Bolts As Follows In The Holes:
- M10x80 in the hole 15
- M10x120 in the hole 11
- M10x80 in the hole 7
- M10x50 in the new hole 5b
Risk of damaging the transmission by mixing ATF and transmission fluid (MTF) through the same bleeder.
- The ATF and transmission fluid must be drained.
-- Draining the ATF. Refer to ATF, DRAINING AND FILLING [7-SPEED DUAL CLUTCH TRANSMISSION] / TRANSMISSION FLUID, DRAINING AND FILLING [7-SPEED DUAL CLUTCH TRANSMISSION] / ATF LEVEL, CHECKING [7-SPEED DUAL CLUTCH TRANSMISSION] .
-- Draining the transmission fluid. Refer to TRANSMISSION FLUID, DRAINING AND FILLING [7-SPEED DUAL CLUTCH TRANSMISSION] / ATF LEVEL, CHECKING [7-SPEED DUAL CLUTCH TRANSMISSION] .

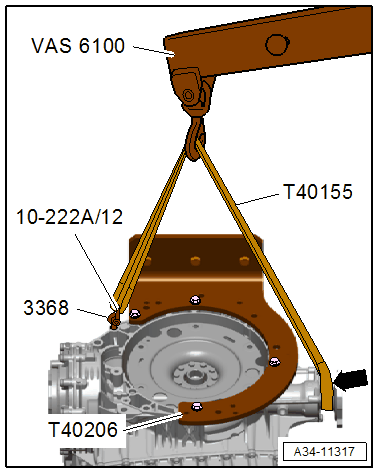

-- Secure the :3368 with the :10-222A/12 on the transmission housing as shown.
-- Secure the :T40155 on the :10-222A/12 and on the left flange shaft -arrow-.
-- Lift the transmission with the :VAS6100 and secure on the :T40206 as shown.
