Overview - Bulkhead

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

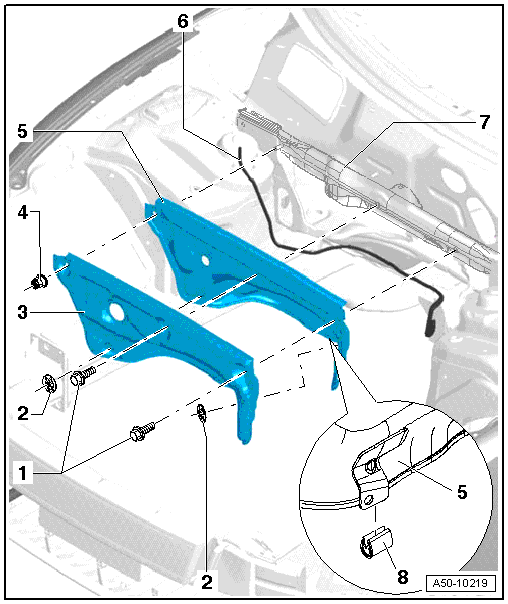

Fig 1: Exploded View Of Plenum Chamber Bulkhead With Components

Courtesy of AUDI

Bolt
- 7 Nm
Lock Washer
- When installing, simply press the plenum chamber bulkhead onto the threaded pins.
Insulation
- The lock washer secures the insulation to the plenum chamber bulkhead.
Nut
- 7 Nm
Plenum Chamber Bulkhead
NOTE:
Note The Different Versions When Removing.
- Before Removing:
  -- Remove The Tower Brace. Refer To TOWER BRACE (REMOVING) , UPPER CONTROL ARM, REMOVING AND INSTALLING and TOWER BRACE, REMOVING AND INSTALLING .

  -- Loosen the washer fluid reservoir.

  -- Disconnect the vacuum line to the brake booster at the connection to the plenum chamber bulkhead.

  -- Unclip the vacuum line from the plenum chamber bulkhead.

  -- Disconnect or unclip coolant lines that are routed through the plenum chamber bulkhead or Refer to COOLANT CONNECTIONS, REMOVING AND INSTALLING [FOR ENGINE(S) CAUA] , COOLANT PIPES [FOR ENGINE(S) CAED, CAEB, CPMB, CPMA] and COOLANT PIPES [FOR ENGINE(S) CAED, CAEB, CPMB, CPMA] .
- To remove, remove the bolts -1- and nut -4-.
Seal
- Install The Seal From Underneath.
Plenum Chamber
Edge Protection
- Slide the edge protection onto the tab on the plenum chamber bulkhead.
