Component Location Overview - Airbag Crash Sensors
NOTE:

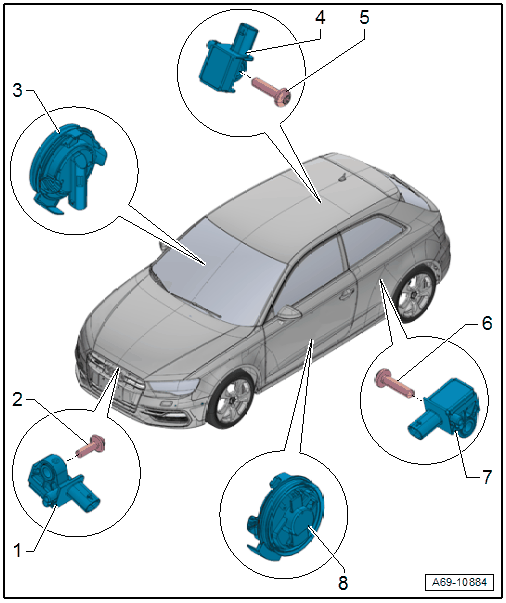

The illustration shows the component location overview for the A3.
- Driver Front Airbag Crash Sensor -G283-
- Component location: in the vehicle center on the lock carrier
- Removing and Installing. Refer to FRONT AIRBAG CRASH SENSOR -G283- / -G284-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to DRIVER THORAX AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER THORAX AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- A3 component location: behind the side trim.
- A3 Sportback/sedan component location: behind the sill panel strip
- Removing and Installing. Refer to DRIVER SIDE REAR THORAX AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR THORAX AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- A3 component location: behind the side trim.
- A3 Sportback/sedan component location: behind the sill panel strip
- Removing and Installing. Refer to DRIVER SIDE REAR THORAX AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR THORAX AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to DRIVER THORAX AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER THORAX AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
