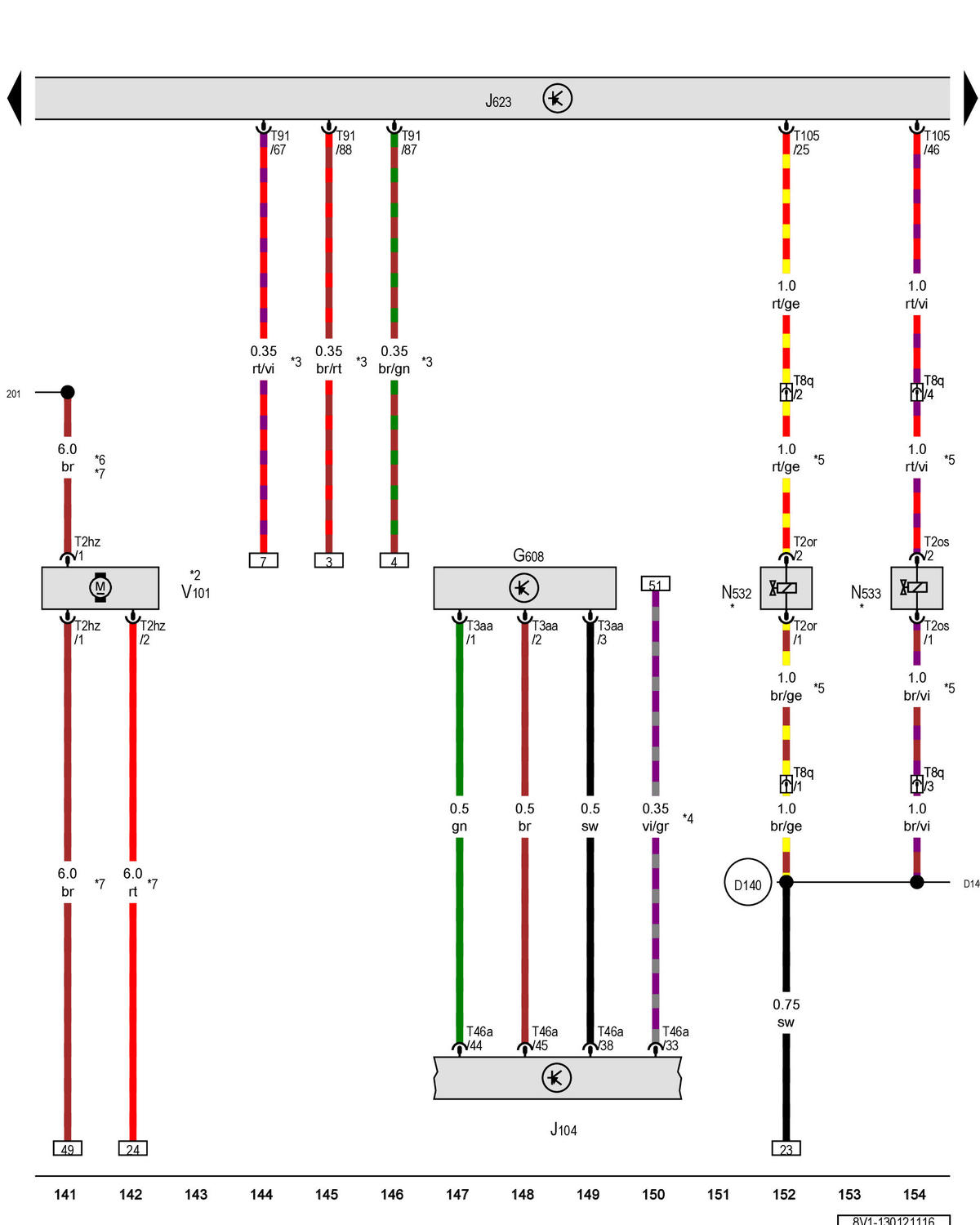

Vacuum Sensor, Engine Control Module, Cylinder 1 Fuel Injector 2, Cylinder 2 Fuel Injector 2, Secondary Air Injection Pump Motor
G608 - Vacuum sensor
J104 - ABS control module
J623 - Engine control module
N532 - Cylinder 1 fuel injector 2
N533 - Cylinder 2 fuel injector 2
T2hz - 2-pin connector, black
T2or - 2-pin connector, black
T2os - 2-pin connector, black
T3aa - 3-pin connector, black
T8q - 8-pin connector, black
T46a - 46-pin connector, black
T91 - 91-pin connector, black
T105 - 105-pin connector, black
V101 - Secondary air injection pump motor
201 - Ground connection 5 (in engine compartment wiring harness)
D140 - Fuel injector connection (in engine pre-wiring harness)
* - Only for vehicles without US equipment
*2 - Only for vehicles with US equipment
*3 - Refer to applicable wiring diagram for battery in engine compartment
*4 - Only for vehicles with a manual transmission
*5 - The color of the wires depends on vehicle equipment
*6 - Omitted as a running change
*7 - Diameter depends on equipment
