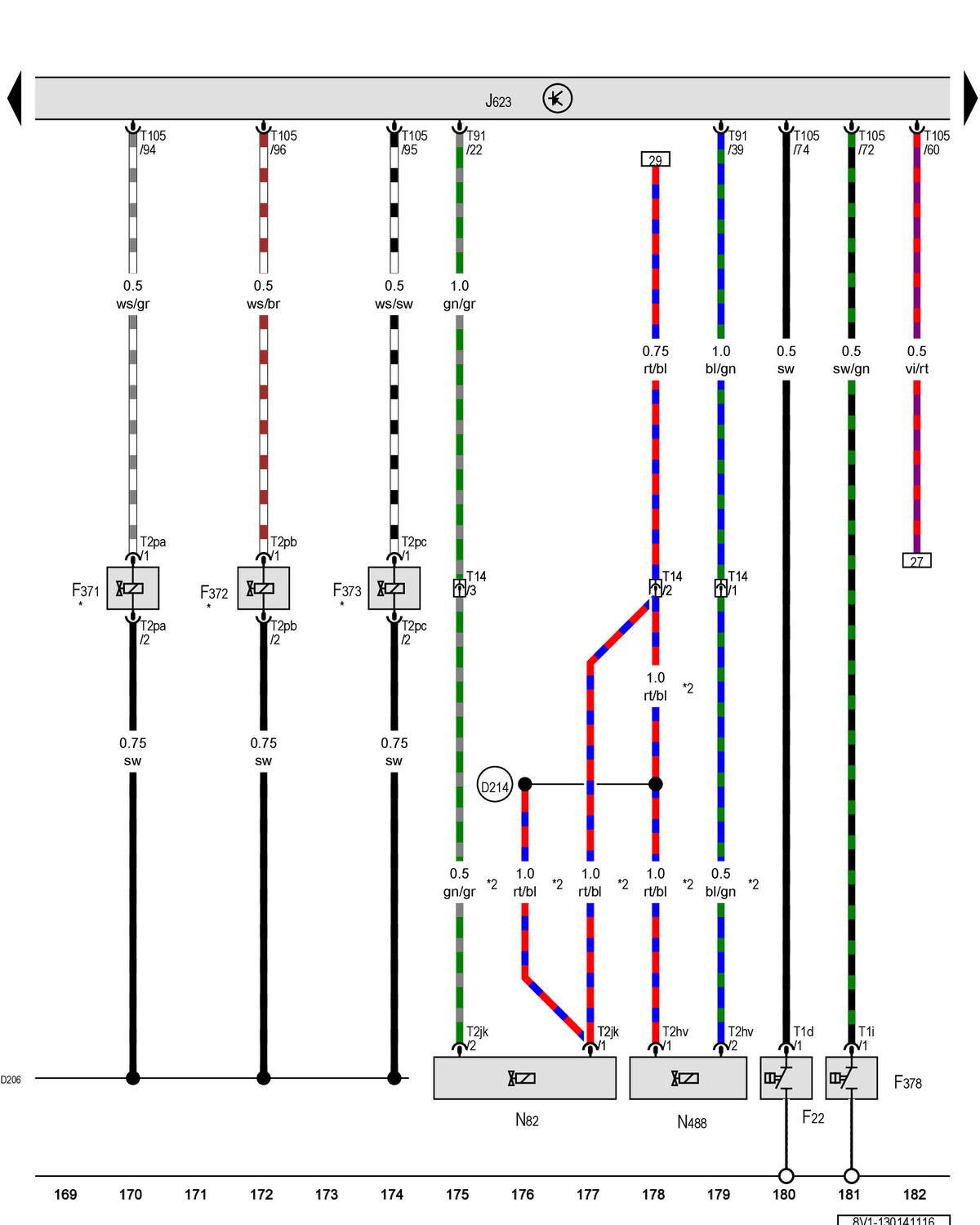

Oil Pressure Switch, Cam Adjustment Actuator 6, Cam Adjustment Actuator 7, Cam Adjustment Actuator 8, Reduced Oil Pressure Switch, Engine Control Module, Coolant Shut-Off Valve, Transmission Coolant Valve
F22 - Oil pressure switch
F371 - Cam adjustment actuator 6
F372 - Cam adjustment actuator 7
F373 - Cam adjustment actuator 8
F378 - Reduced oil pressure switch
J623 - Engine control module
N82 - Coolant shut-off valve
N488 - Transmission coolant valve
T1d - 1-pin connector
T1i - 1-pin connector, black
T2hv - 2-pin connector, black
T2jk - 2-pin connector, black
T2pa - 2-pin connector, black
T2pb - 2-pin connector, black
T2pc - 2-pin connector, black
T14 - 14-pin connector, gray
T91 - 91-pin connector, black
T105 - 105-pin connector, black
D206 - Connection 87a (in engine pre-wiring harness) 4
D214 - Connection 8 (87a) (in engine compartment wiring harness)
* - Only for vehicles without US equipment
*2 - Depending on equipment
