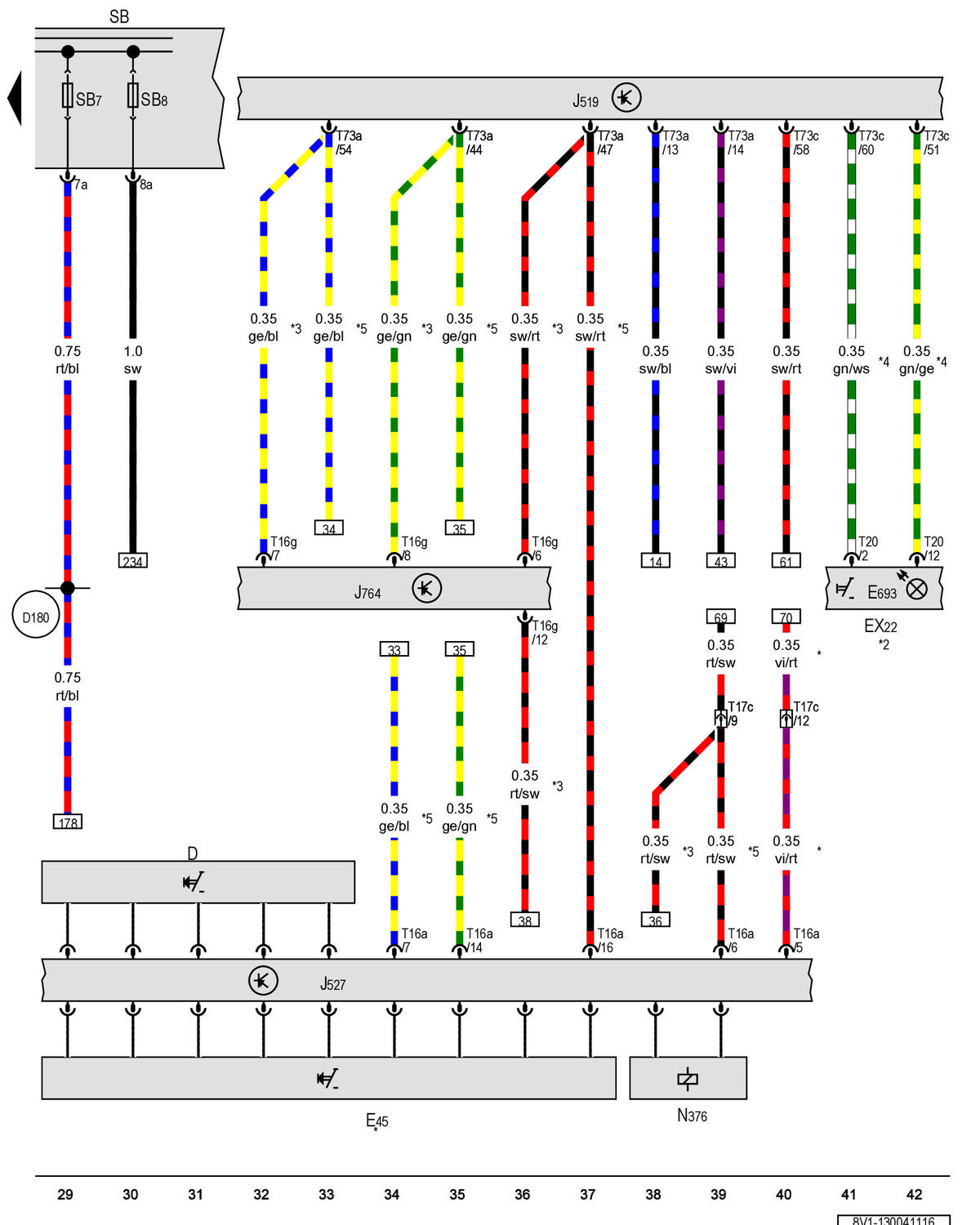

Ignition/Starter Switch, Switch Module In Instrument Panel, Center, Cruise Control Switch, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Fuse 7 (On Fuse Panel B), Fuse 8 (On Fuse Panel B)
D - Ignition/starter switch
EX22 - Switch module in instrument panel, center
E45 - Cruise control switch
E693 - Start/Stop mode button
J519 - Vehicle electrical system control module
J527 - Steering column electronics control module
J764 - Electronic steering column lock control module
N376 - Ignition switch key lock solenoid
SB - Fuse panel B
SB7 - Fuse 7 (on fuse panel B)
SB8 - Fuse 8 (on fuse panel B)
T16a - 16-pin connector, black
T16g - 16-pin connector, black
T17c - 17-pin connector, on the lower left A-pillar, red
T20 - 20-pin connector, red
T73a - 73-pin connector, black
T73c - 73-pin connector, black
D180 - Connection 87a (in engine compartment wiring harness)
* - Only for vehicles with cruise control
*2 - Refer to applicable wiring diagram for battery in engine compartment
*3 - Only for vehicles with access/start authorization system
*4 - Only for vehicles with Start/Stop system
*5 - Only for vehicles without access/start authorization system
