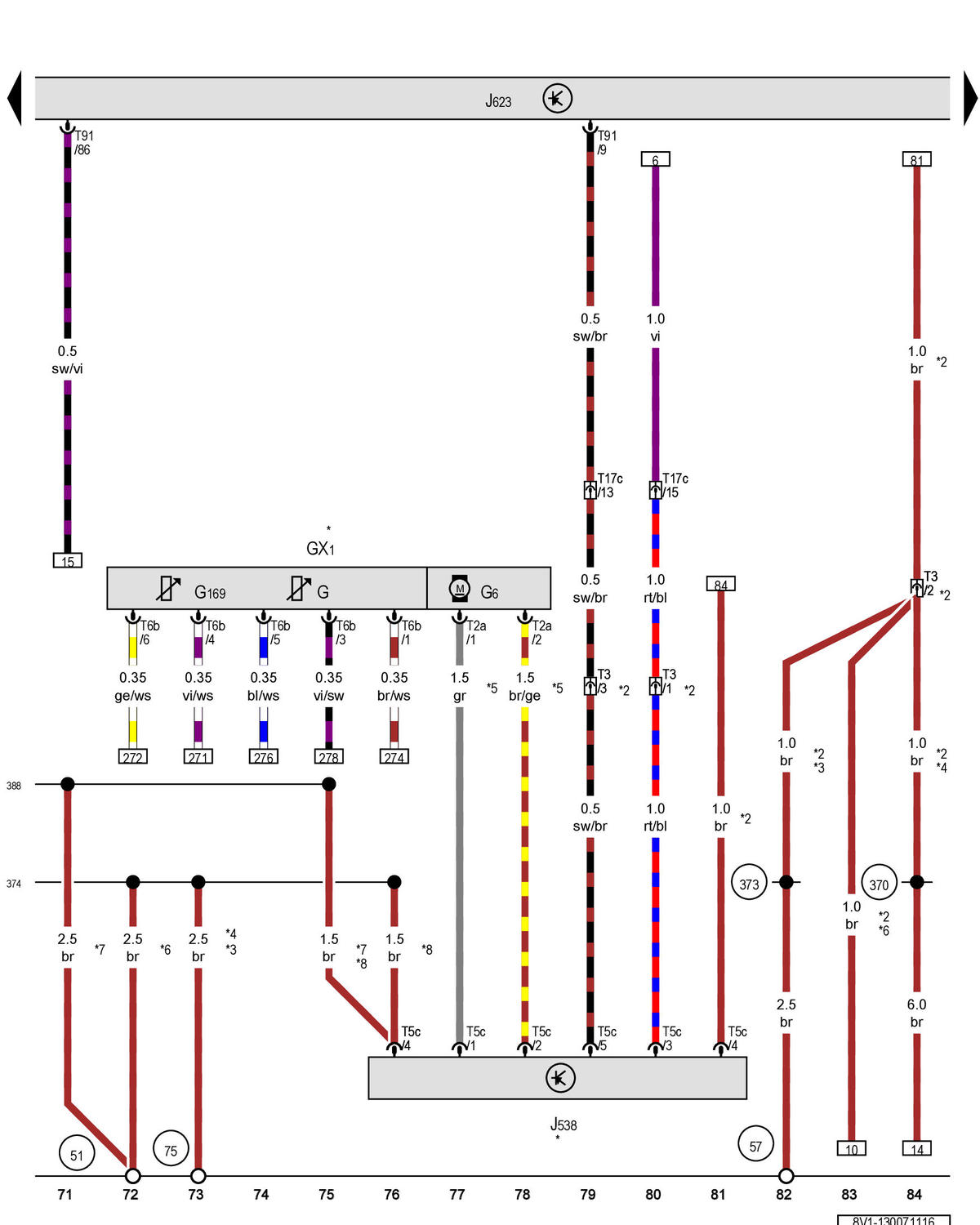

Fuel Level Sensor, Fuel Delivery Unit, Transfer Fuel Pump, Engine Control Module
G - Fuel level sensor
GX1 - Fuel delivery unit
G6 - Transfer fuel pump
G169 - Fuel level sensor 2
J538 - Fuel pump control module
J623 - Engine control module
T2a - 2-pin connector, black
T3 - 3-pin connector, black
T5c - 5-pin connector, black
T6b - 6-pin connector, black
T17c - 17-pin connector, on the lower left A-pillar, red
T91 - 91-pin connector, black
51 - Ground connection in luggage compartment, right
57 - Ground connection on left rear pillar
75 - Ground connection on right rear pillar
370 - Ground connection 5 (in main wiring harness)
373 - Ground connection 8 (in main wiring harness)
374 - Ground connection 9 (in main wiring harness)
388 - Ground connection 23 (in main wiring harness)
* - Only for AWD vehicles
*2 - Only for vehicles with a parking heater
*3 - Only for vehicles with 3-door equipment
*4 - Only for vehicles with 5-door equipment
*5 - The color of the wires depends on vehicle equipment
*6 - Only for vehicles with 4-door equipment
*7 - Only for Cabriolet
*8 - Only for vehicles without parking heater
