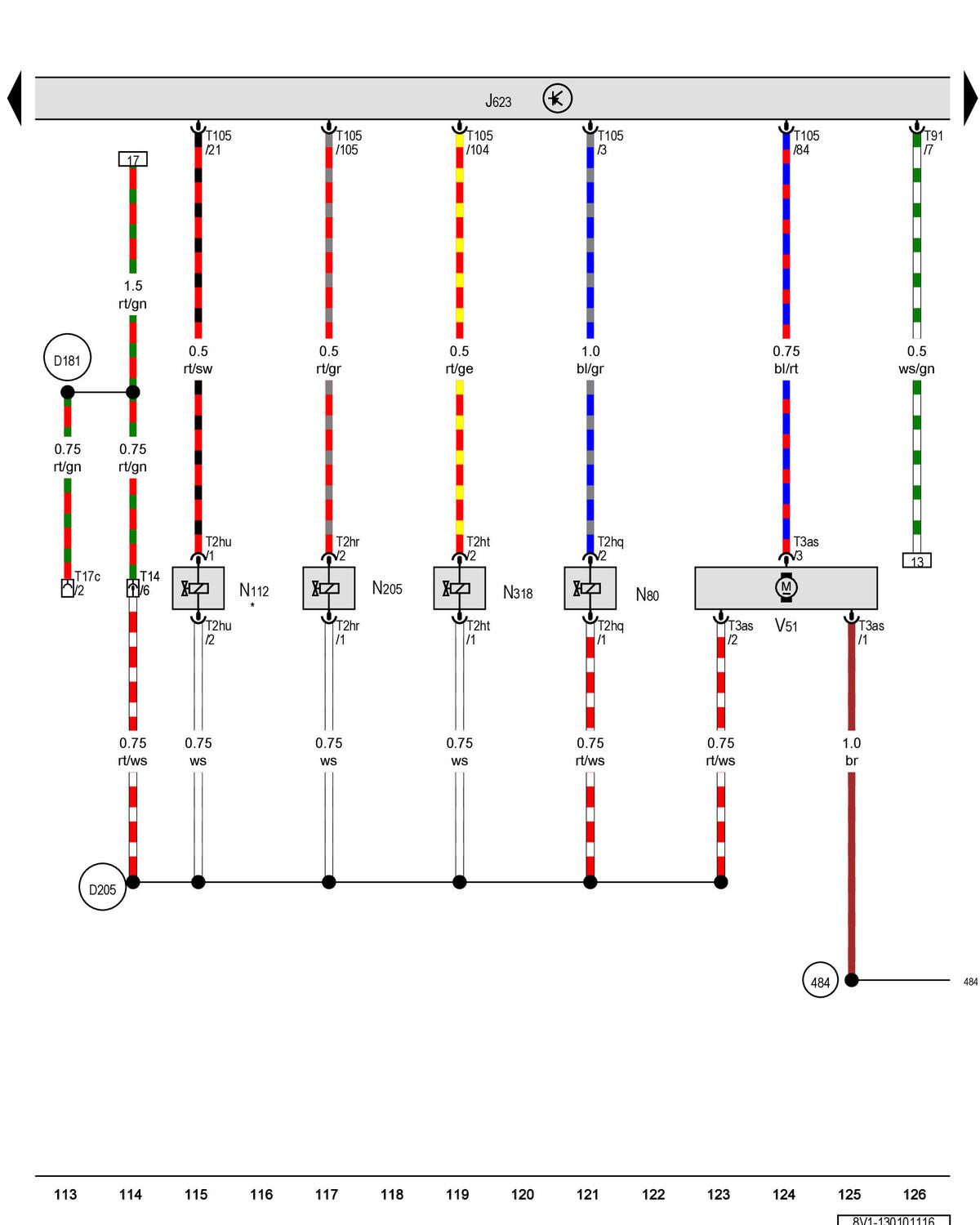

Engine Control Module, EVAP Canister Purge Regulator Valve 1, Secondary Air Injection Solenoid Valve, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1, After-Run Coolant Pump
J623 - Engine control module
N80 - EVAP canister purge regulator valve 1
N112 - Secondary air injection solenoid valve
N205 - Camshaft adjustment valve 1
N318 - Exhaust camshaft adjustment valve 1
T2hq - 2-pin connector, black
T2hr - 2-pin connector, black
T2ht - 2-pin connector, black
T2hu - 2-pin connector, black
T3as - 3-pin connector, black
T14 - 14-pin connector, gray
T17c - 17-pin connector, on the lower left A-pillar, red
T91 - 91-pin connector, black
T105 - 105-pin connector, black
V51 - After-run coolant pump
484 - Ignition coil ground connection 2 (in engine pre-wiring harness)
D181 - Connection 2 (87a) (in engine compartment wiring harness)
D205 - Connection 87a (in engine pre-wiring harness) 3
* - Only for vehicles with US equipment
