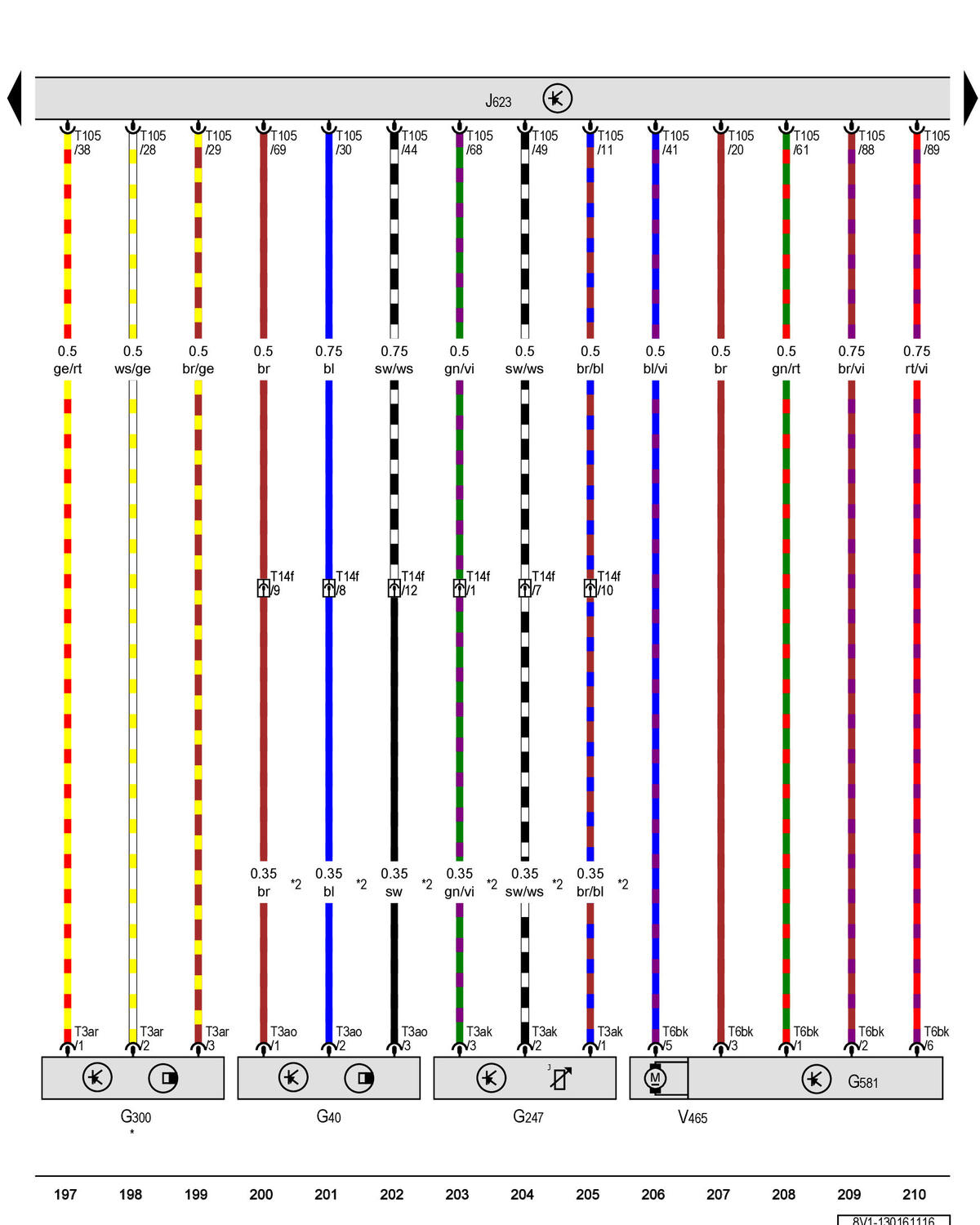

Camshaft Position Sensor, Fuel Pressure Sensor, Camshaft Position Sensor 3, Engine Control Module, Charge Air Pressure Actuator

Courtesy of AUDI OF AMERICA, LLC

G40 -  Camshaft position sensor

G247 -  Fuel pressure sensor

G300 -  Camshaft position sensor 3

G581 -  Charge air pressure actuator position sensor

J623 -  Engine control module

T3ak -  3-pin connector, black

T3ao -  3-pin connector, black

T3ar -  3-pin connector, black

T6bk -  6-pin connector, gray

T14f -  14-pin connector, in the engine compartment, black

T105 -  105-pin connector, black

V465 -  Charge air pressure actuator

* -  Only for vehicles without US equipment

*2 -  The color of the wires depends on vehicle equipment
