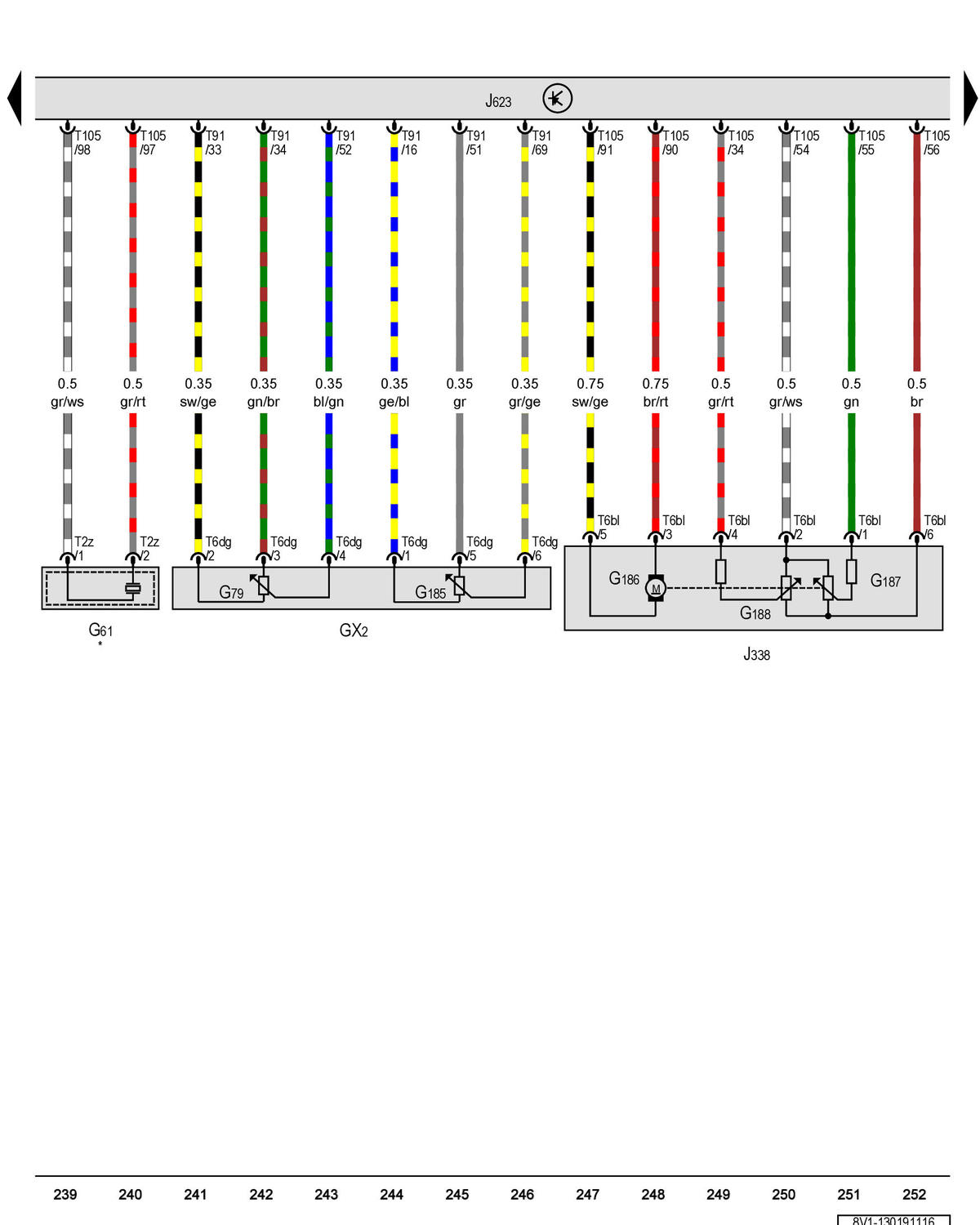

Accelerator Pedal Module, Knock Sensor 1, Throttle Valve Control Module, Engine Control Module

Courtesy of AUDI OF AMERICA, LLC

GX2 -  Accelerator pedal module

G61 -  Knock sensor 1

G79 -  Accelerator pedal position sensor

G185 -  Accelerator pedal position sensor 2

G186 -  EPC throttle drive

G187 -  EPC throttle drive angle sensor 1

G188 -  EPC throttle drive angle sensor 2

J338 -  Throttle valve control module

J623 -  Engine control module

T2z -  2-pin connector, black

T6bl -  6-pin connector, black

T6dg -  6-pin connector, black

T91 -  91-pin connector, black

T105 -  105-pin connector, black

* -  pre-wired component
