Fuel Tank Pressure Sensor -G400-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the EVAP canister. Refer to EVAP CANISTER, REMOVING AND INSTALLING, NORTH AMERICAN VEHICLES .

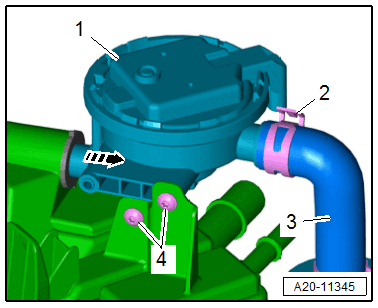

-- Loosen the hose clamp -2- to remove the vent hose -3-.
-- Remove the bolts -4-.
-- Remove the Fuel Tank Pressure Sensor -G400- -1- from the EVAP canister in direction of -arrow-.
