Overview - Fuel Tank, USA And CANADA Market Versions With AWD

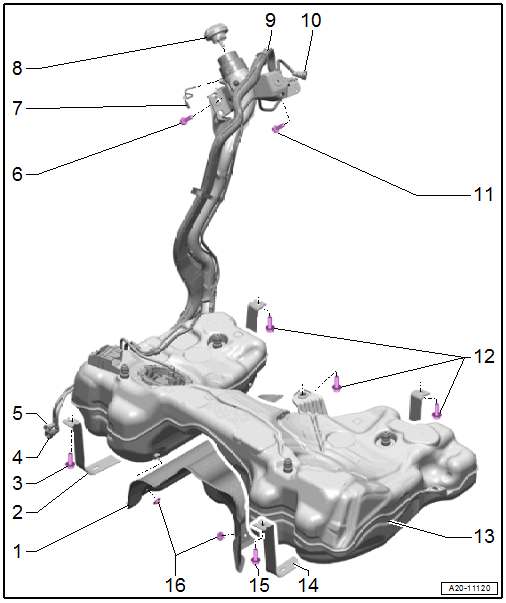

Fig 1: Overview Of Fuel Tank, USA & Canada Market Versions With AWD

Courtesy of AUDI OF AMERICA, LLC

1. Heat Shield
   • For the fuel tank
2. Right Mounting Strap
3. Bolt
   • 20 Nm + 90°
   • Always replace after removing
4. Fuel Line
   • To the engine
   • Do not kink
   • Clipped to the fuel tank
   • Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
5. Breather Line
   • To EVAP Canister Purge Regulator Valve 1 -N80-
   • Do not kink
   • Clipped to the fuel tank
   • Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
6. Bolt
   • 8 Nm + 90°
   • Always replace after removing
   • To attach the fuel filler neck
   • For discharging electrostatic charge. Refer to Figure.
7. Ground Connection
   • For fuel filler tube
   • For discharging electrostatic charge. Refer to Figure.
8. Cap
   • Turn until it clicks into place.
   • Attached to the fuel filler door unit with fastening device
9. Breather Line
   • To the Evaporative Emission (EVAP) canister
   • Do not kink
   • Clipped to the fuel tank
   • Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
10. Breather Line
    • To the EVAP canister
    • Do not kink
    • Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
11. Bolt
    • 8 Nm + 90°
    • Always replace after removing
12. Bolts
    • 20 Nm + 90°
    • Always replace after removing
13. Fuel Tank
    • Removing and installing. Refer to FUEL TANK, REMOVING AND INSTALLING, AWD VEHICLES .
14. Left Mounting Strap
15. Bolt
    • 20 Nm + 90°
    • Always replace after removing
16. Nut
    • 2 Nm
    • For heat shield
