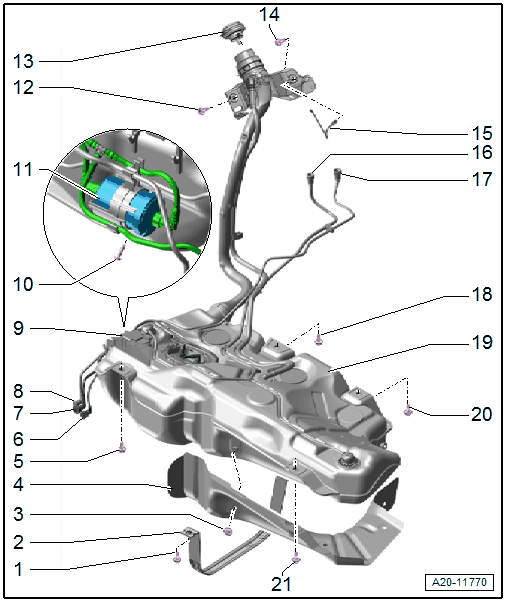

Overview - Fuel Tank, A3/SPORTBACK/Sedan With Fwd And Torsion Beam Axle
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 20 Nm + 90°
- Always replace after removing
- Mounting Strap
- Nut
- 2 Nm
- For heat shield
- Heat Shield
- For the fuel tank
- Bolts
- 20 Nm + 90°
- Always replace after removing
- Fuel Line to the Parking Heater
- Equipment levels
- Do not kink
- Connector couplings, disconnecting and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Supply Line
- To the engine
- Clipped to the fuel tank
- Do not kink
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Breather Line
- To EVAP Canister Purge Regulator Valve 1 -N80-
- Clipped to the fuel tank
- Do not kink
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bracket
- For the Fuel Pump Control Module -J538-
- Bolt
- Tightening specification. Refer to
- Fuel Filter
- Removing and installing. Refer to
- Bolt
- 8 Nm + 90°
- Always replace after removing
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastening device
- Screw
- 8 Nm
- To attach the fuel filler neck
- For discharging electrostatic charge. Refer to Figure.
- Ground Connection
- For fuel filler tube
- For discharging electrostatic charge. Refer to Figure.
- Breather Line
- To the Evaporative Emission (EVAP) canister
- Clipped to the fuel tank
- Do not kink
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Breather Line
- To the EVAP canister
- Clipped to the fuel tank
- Do not kink
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bolt
- 20 Nm + 90°
- Always replace after removing
- Fuel Tank
- Removing and installing. Refer to FUEL TANK, REMOVING AND INSTALLING, FWD VEHICLES AND TORSION BEAM AXLE .
- Bolt
- 20 Nm + 90°
- Always replace after removing
- Bolt
- 20 Nm + 90°
- Always replace after removing
