Tank Switch-Off Valve -N288-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the fuel tank. Refer to FUEL TANK, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM .

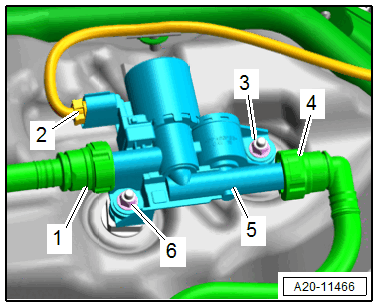

-- Disconnect the connector -2- to release the connector safety catch.
-- Disconnect breather lines -1 and 4-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
-- Remove the nuts -3 and 6- and remove the Tank Switch-Off Valve -N288- -5- for the fuel system.
