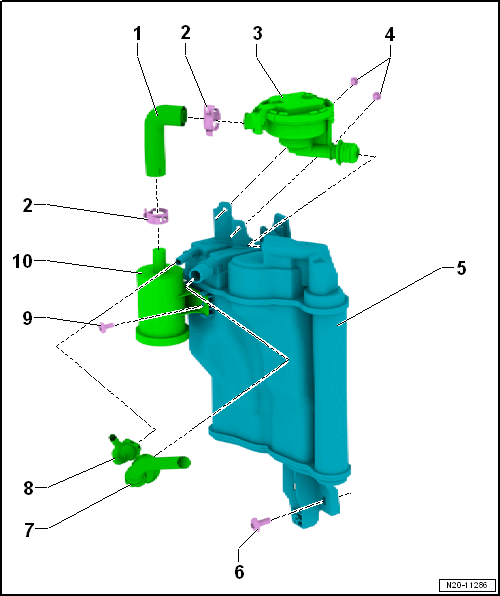

Overview - EVAP System
WARNING: This page is about a different variant/trim than selected.
- Connecting Hose
- From air filter to pressure regulating valve
- Hose Clamps
- Pressure Regulator Valve
- With Fuel Tank Pressure Sensor -G400-
- Bolts
- 2.5 Nm
- Evaporative Emission (EVAP) Canister
- Component location: behind the wheel housing liner inside right rear wheel housing
- Removing and installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Breather Line
- To the fuel tank
- Breather Line
- To EVAP Canister Purge Regulator Valve 1 -N80-
- Bolt
- 2.5 Nm
- Air Filter
