EVAP Canister, Removing And Installing: Removing

-- Observe the safety precautions.

-- Follow the rules for clean working conditions.

-- Remove the right rear wheel. Refer to the appropriate service information .

-- Remove the right rear wheel housing liner. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

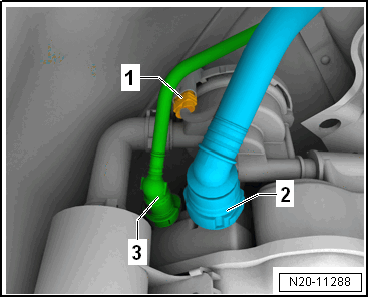

-- Release and disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the breather lines -2 and 3- from the Evaporative Emission (EVAP) Canister.

-- Remove the bolt -arrow-.

-- Using a screwdriver, lightly push the retainer -A- toward the luggage compartment.

-- Pull the EVAP canister downward from the guide bracket and remove.

Courtesy of AUDI OF AMERICA, LLC
