Charge Air Pressure Actuator -V465-, Adjusting: Notes
WARNING: This page is about a different variant/trim than selected.
The Procedure Description Only Applies to Engines with Engine Code CJXC.
Special Tools And Workshop Equipment Required
- Setting Gauge:T40290
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

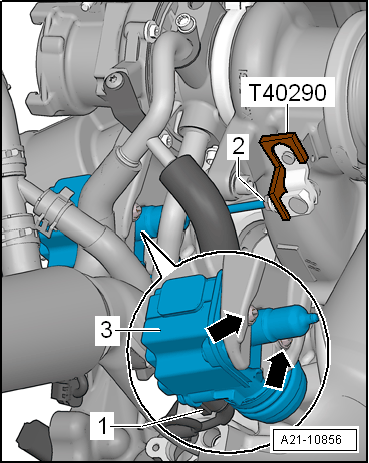

-- Install the :T40290 .
-- Adjust the Charge Air Pressure Actuator -V465- select 01 - Adjust Charge Air Pressure Actuator V465 in Guided Functions . Refer to the Vehicle Diagnostic Tester.
-- Remove the :T40290 .
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
