Overview - Air Duct For Manual Transmission Versions

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi RS 3, 2017 Audi A3 Quattro, 2017 Audi A3, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.

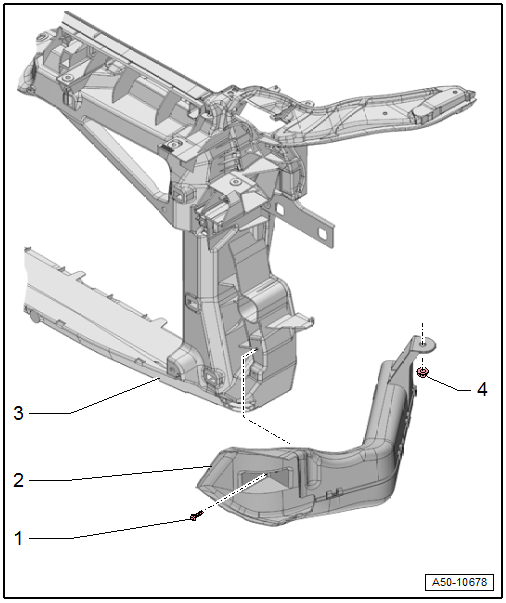

Fig 1: Exploded View Of Air Duct For Manual Transmission Versions
GWWA50-10678Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 4 Nm
  2. Air Duct
  3. Lock Carrier
  4. Nut
    • 16 Nm
