Manual Transmission Air Duct, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi RS 3, 2017 Audi A3 Quattro, 2017 Audi A3, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air intake grille. Refer to ATTACHMENTS, REMOVING AND INSTALLING .

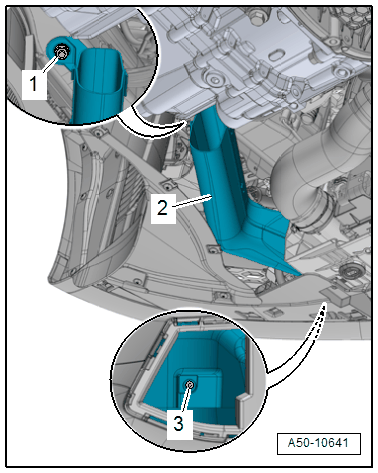

-- Remove the bolt -3-.
-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- Remove the nut -1-.
-- Remove the air duct -2- to the rear.
