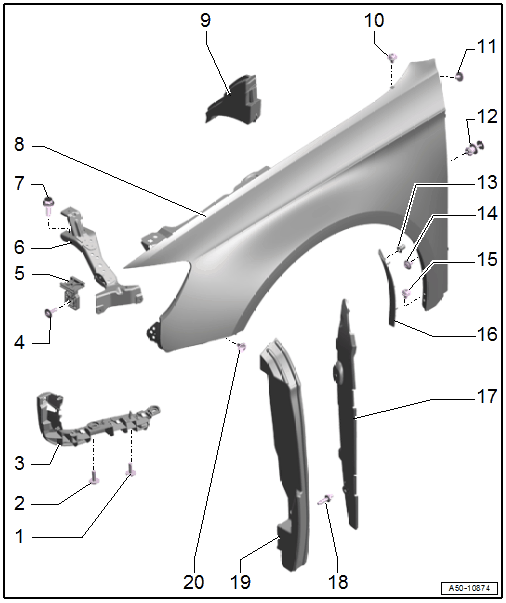

Overview - Fender, RS3
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi RS 3, 2017 Audi A3 Quattro, 2017 Audi A3, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 2 Nm
- Bolt
- 4.5 Nm
- Quantity: 2
- Mount
- For the bumper cover
- To secure the headlamp
- Removing and installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, RS3 .
- Bolt
- Tightening specification. Refer to HEADLAMPS .
- Mount
- For the headlamp
- Bracket
- For the fender
- Removing and installing. Refer to FENDER BRACE, REMOVING AND INSTALLING
- Bolt
- 8 Nm
- Quantity: 2
- Fender
- Removing and installing. Refer to FENDER, REMOVING AND INSTALLING
- Overview - bracket on right fender. Refer to OVERVIEW - BRACKET ON RIGHT FENDER
- Repair kit. Refer to OVERVIEW - FENDER REPAIR KIT .
- Seal
- Self-adhesive
- Only on the right side of vehicle
- Bolt
- 8 Nm
- Quantity: 3
- Bolt
- 8 Nm
- Expanding Rivet
- Quantity: 2
- Grommet
- Quantity: 3
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Quantity: 2
- Cover
- For the wheel housing liner
- Removing and installing. Refer to WHEEL HOUSING LINER COVER, REMOVING AND INSTALLING
- End Panel
- Removing and installing. Refer to END PLATE, REMOVING AND INSTALLING
- Double Bolt
- 8 Nm
- Insulation
- For the fender
- Bolt
- 8 Nm
- Quantity: 2
