Headlamp Bracket - Tightening Specification And Sequence

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi RS 3, 2017 Audi A3 Quattro, 2017 Audi A3, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.

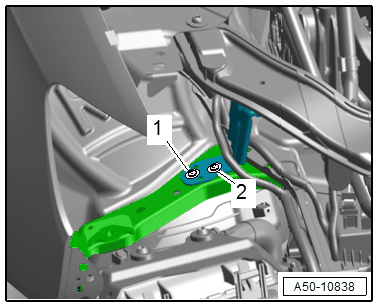

GWWA50-10838Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in the steps shown in the sequence:

Step Screws Tightening Specification
1. -1- Install by hand all the way
2. -2- 8 Nm
3. -1- 8 Nm
