Fender, Removing And Installing: Removing: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi RS 3, 2017 Audi A3 Quattro, 2017 Audi A3, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.
-- Open the front door.

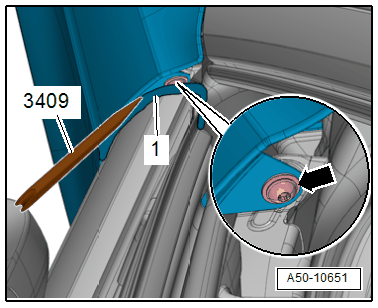

-- Push aside the end plate -1- in the upper area using the :3409 .
-- Remove the bolt -arrow-.
-- RS3: Remove the windshield washer fluid reservoir. Refer to WINDSHIELD WASHER SYSTEM .
-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
-- If equipped remove the damper for the fender.

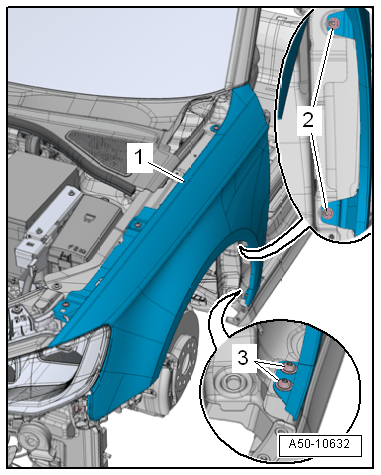

-- Remove the bolts -2 and 3-.
-- Remove the sealing piece. Refer to SEALING PIECE, REMOVING AND INSTALLING .

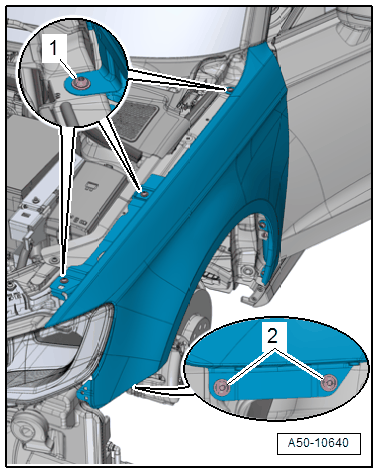

-- Remove the bolts -1 and 2-.

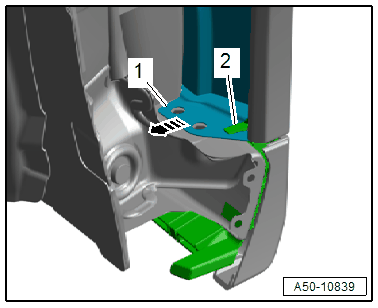

-- RS3: Slide the fender -1- towards the A-pillar -arrow- and remove upward out of the retaining tab -2-.
-- Remove the fender.
