End Plate, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi RS 3, 2017 Audi A3 Quattro, 2017 Audi A3, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front door. Refer to DOOR, REMOVING AND INSTALLING .

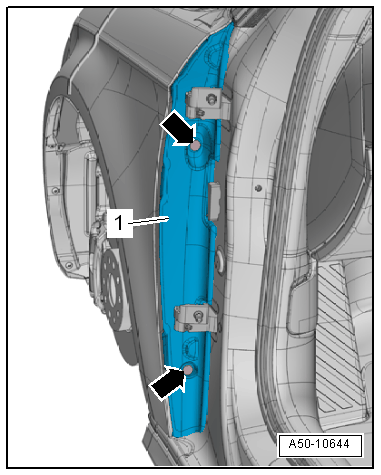

-- Remove the expanding rivets -arrows-.

GWWA50-10644Courtesy of AUDI OF AMERICA, LLC

-- Remove the end panel -1- to the rear.
