Sealing Piece, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi RS 3, 2017 Audi A3 Quattro, 2017 Audi A3, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

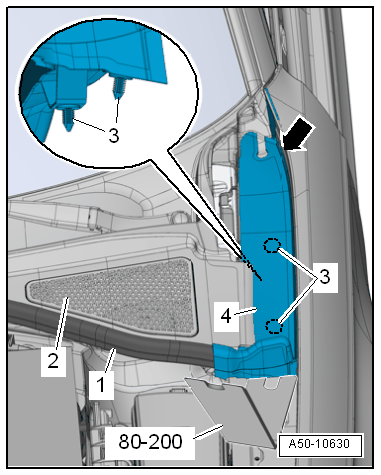

-- Remove the seal -1- and lift the plenum chamber cover -2- in the area of the press piece.
-- Carefully remove the retainers -3- using the :80-200 from the body.
-- Remove the press piece -4- forward, while doing so the press piece must be guided out the fender cut-out -arrow-.
