Plenum Chamber Bulkhead, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi RS 3, 2017 Audi A3 Quattro, 2017 Audi A3, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with High-Voltage System:

-- De-energize the high-voltage system. Refer to .

Continuation for All:

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

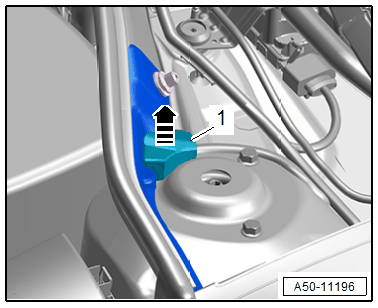

-- Pry out the sealing piece -1- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

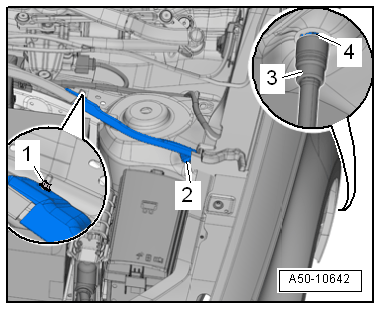

-- Remove the nut -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catch -4- from the wheel well side using a 6 mm socket -item 3-.

-- Remove cover -2- upward.

-- RS3: remove the washer fluid reservoir filler neck. Refer to WINDSHIELD WASHER SYSTEM .

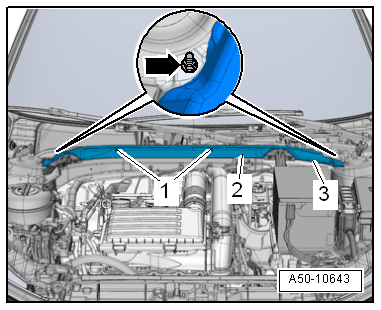

-- Remove the metal nuts -1- and free up the heat shield -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and then remove the plenum chamber bulkhead -3- upward.
