Overview - Plenum Chamber Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi RS 3, 2017 Audi A3 Quattro, 2017 Audi A3, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.

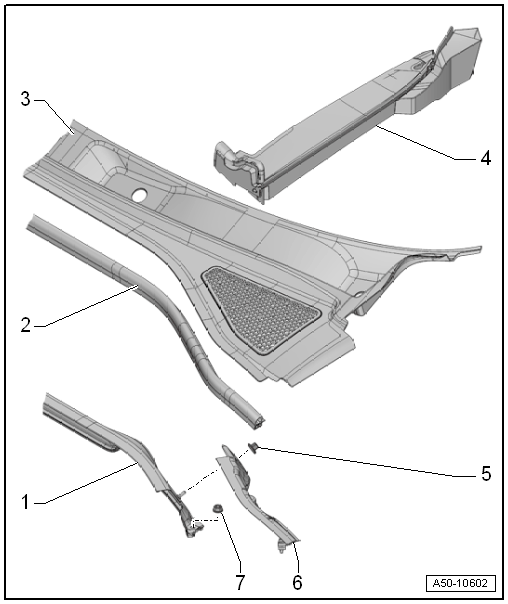

Fig 1: Exploded View Of Plenum Chamber Cover

Courtesy of AUDI OF AMERICA, LLC

Plenum Chamber Bulkhead
- Overview. Refer to OVERVIEW - BULKHEAD .
Seal
- Replace if damaged
Plenum Chamber Cover
- There are different versions.
- Removing and installing. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING
Sealing Piece
- Removing and installing. Refer to SEALING PIECE, REMOVING AND INSTALLING
Nut
- Tightening specification. Refer to OVERVIEW - BULKHEAD .
Cover
- For the plenum chamber bulkhead
- Overview. Refer to OVERVIEW - BULKHEAD .
Nut
- Tightening specification. Refer to OVERVIEW - BULKHEAD .
