Overview - Fuel Delivery Unit/Fuel Level Sensor, Vehicles With Front Wheel Drive (Fwd)
WARNING: This page is about a different car, the 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

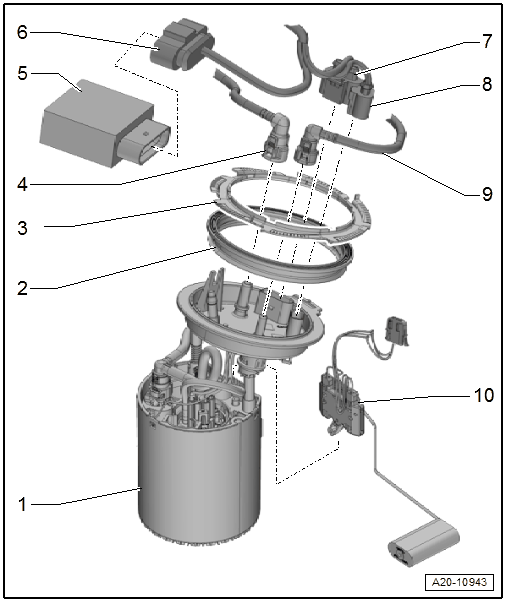

- Fuel Delivery Unit
- With Transfer Fuel Pump -G6-
- Check the electric fuel pump using Guided Fault Finding . Refer to Vehicle Diagnostic Tester.
- Removing and installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
- After replacing, reset the adaption values. Refer to Vehicle Diagnostic Tester, Guided Functions , Reset Adaptation Values
- Fill the fuel tank with at least five liters of fuel after installing
- Seal
- Replacing
- Install dry
- Locking Ring
- 110 Nm
- Loosen and tighten using the Wrench - Fuel Sending Unit:T10202
- Fuel Supply Line
- To fuel filter
- Clipped to the fuel tank
- Do not kink
- To disconnect, press release button on connection piece.
- Note direction of arrow (fuel supply or return) on locking flange when installing
- Install until it clicks into place
- Press again and pull to make sure the connection is engaged correctly.
- Fuel Pump Control Module -J538-
- Checking in Guided Functions . Refer to Vehicle Diagnostic Tester
- Removing and installing. Refer to FUEL PUMP CONTROL MODULE - J538-, REMOVING AND INSTALLING .
- Connector
- For the Fuel Pump Control Module -J538-
- Make sure it is attached securely
- Connector
- For Transfer Fuel Pump -G6-
- Make sure it is attached securely
- Connector
- For fuel level sensor -G-
- Make sure it is attached securely
- Fuel Return Line
- From engine
- Clipped to the fuel tank
- Do not kink
- To remove from the locking flange, press the release button.
- Note direction of arrow (fuel supply or return) on locking flange when installing
- Install until it clicks into place
- Press again and pull to make sure the connection is engaged correctly.
- Fuel Level Sensor -G-
- For checking the resistance values, refer to FUEL LEVEL SENSOR - G-, CHECKING .
- Electrical testing in Guided Fault Finding refer to Vehicle Diagnostic Tester
- Removing and installing. Refer to FUEL LEVEL SENSOR - G-, REMOVING AND INSTALLING .
