Fuel Level Sensor - G-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Observe safety precautions. Refer to SAFETY PRECAUTIONS .
-- Follow the guidelines for clean working conditions. Refer to CLEAN WORKING CONDITIONS .
-- Remove the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

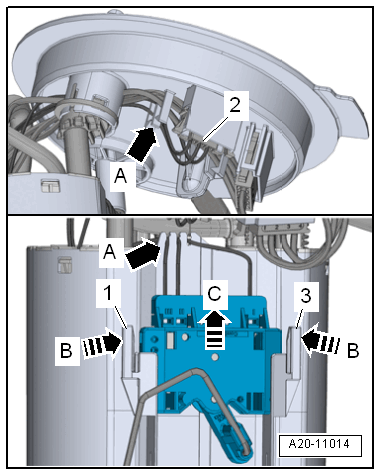

-- Disconnect the connector -2- from the locking flange.
-- Disengage and free up the wires on the bracket -A arrows-.
-- Release the retainers -1-, -3- -B arrows- and press out the Fuel Level Sensor -G- upward -arrow C-.
