Home >> Audi >> 2016 >> A3 TDI Prestige >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Wiring Diagram (CRUA, DEJA, DEJB) -- (A3 Sedan) >> Wiring Diagram(S) >> Terminal 30 Power Supply Relay, Reducing Agent Metering System Relay, Fuse Panel C >> Notes

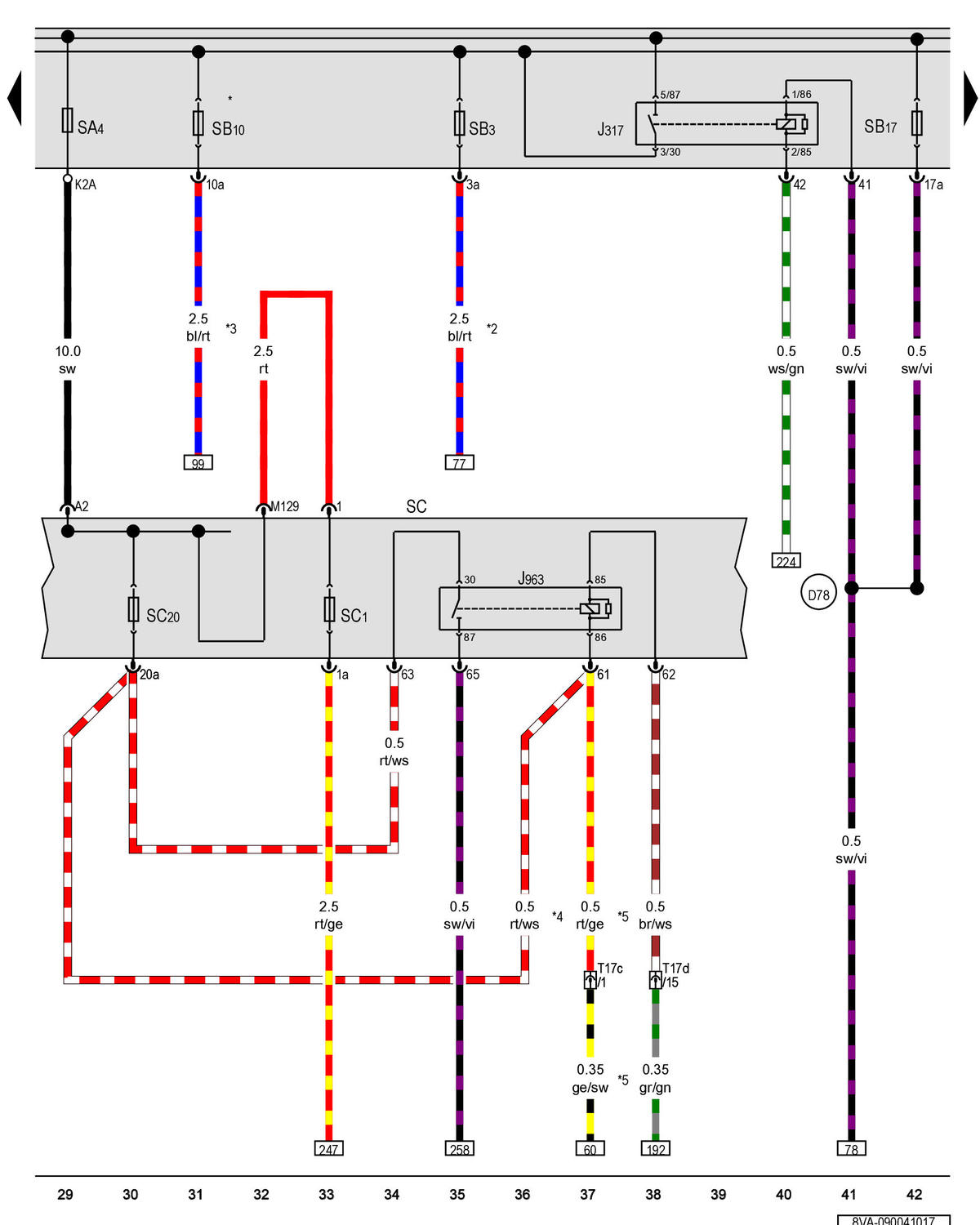

Terminal 30 Power Supply Relay, Reducing Agent Metering System Relay, Fuse Panel C: Notes

GWW8VA-090041017Courtesy of AUDI OF AMERICA, LLC
