Home >> Audi >> 2016 >> A3 TDI Prestige >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Wiring Diagram (CRUA, DEJA, DEJB) -- (A3 Sedan) >> Wiring Diagram(S) >> Engine/Motor Control Module, WASTEGATE Bypass Regulator Valve, Positive Crankcase Ventilation Heating Element, Camshaft Adjustment Valve 1, Fuel Pressure Regulator Valve, Fuel Metering Valve, EGR Cooler Switch-Over Valve >> Notes

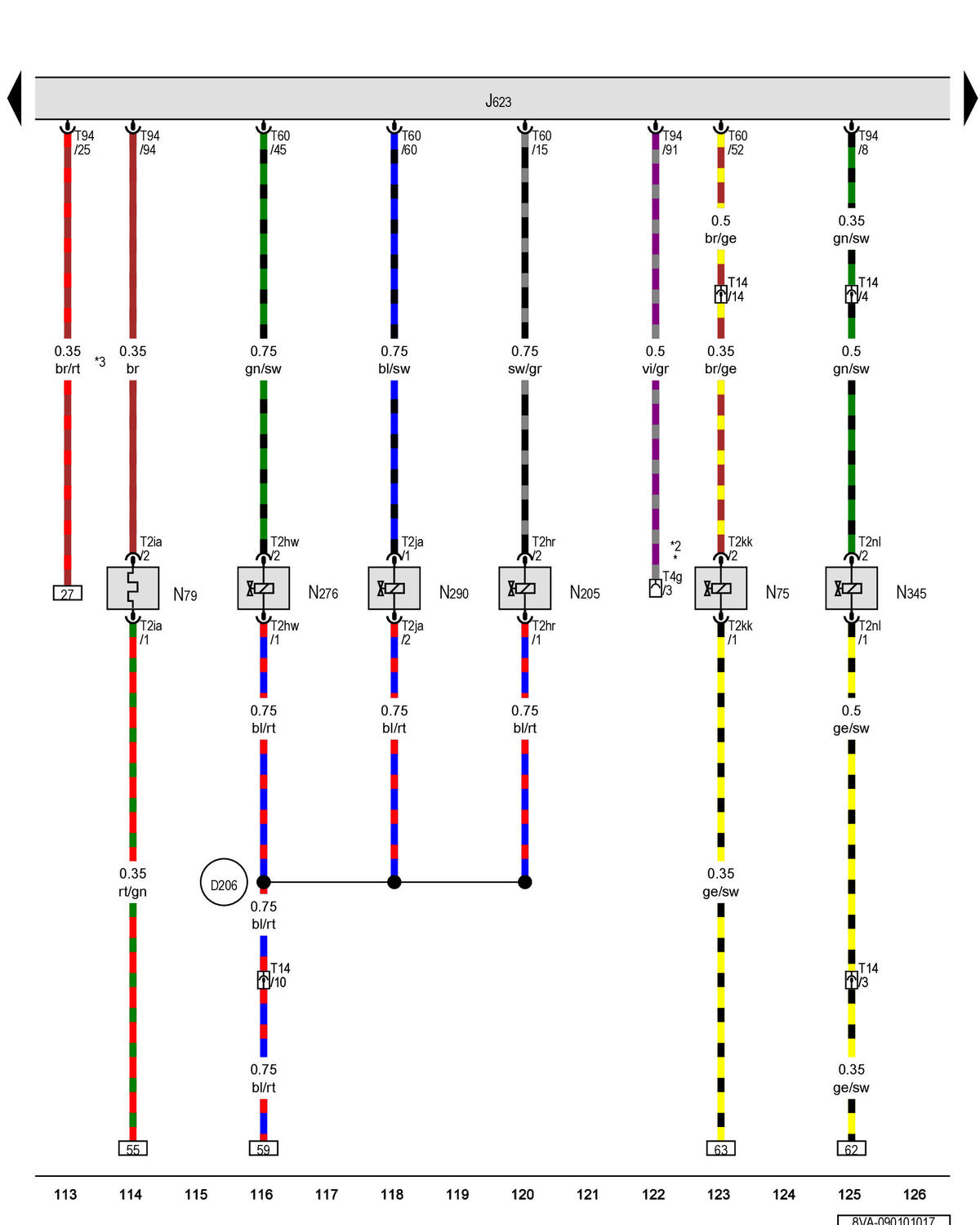

Engine/Motor Control Module, WASTEGATE Bypass Regulator Valve, Positive Crankcase Ventilation Heating Element, Camshaft Adjustment Valve 1, Fuel Pressure Regulator Valve, Fuel Metering Valve, EGR Cooler Switch-Over Valve: Notes

GWW8VA-090101017Courtesy of AUDI OF AMERICA, LLC
