Wiring Diagram (CRUA, DEJA, DEJB) -- (A3 Sedan)
>>
Wiring Diagram(S)
>>

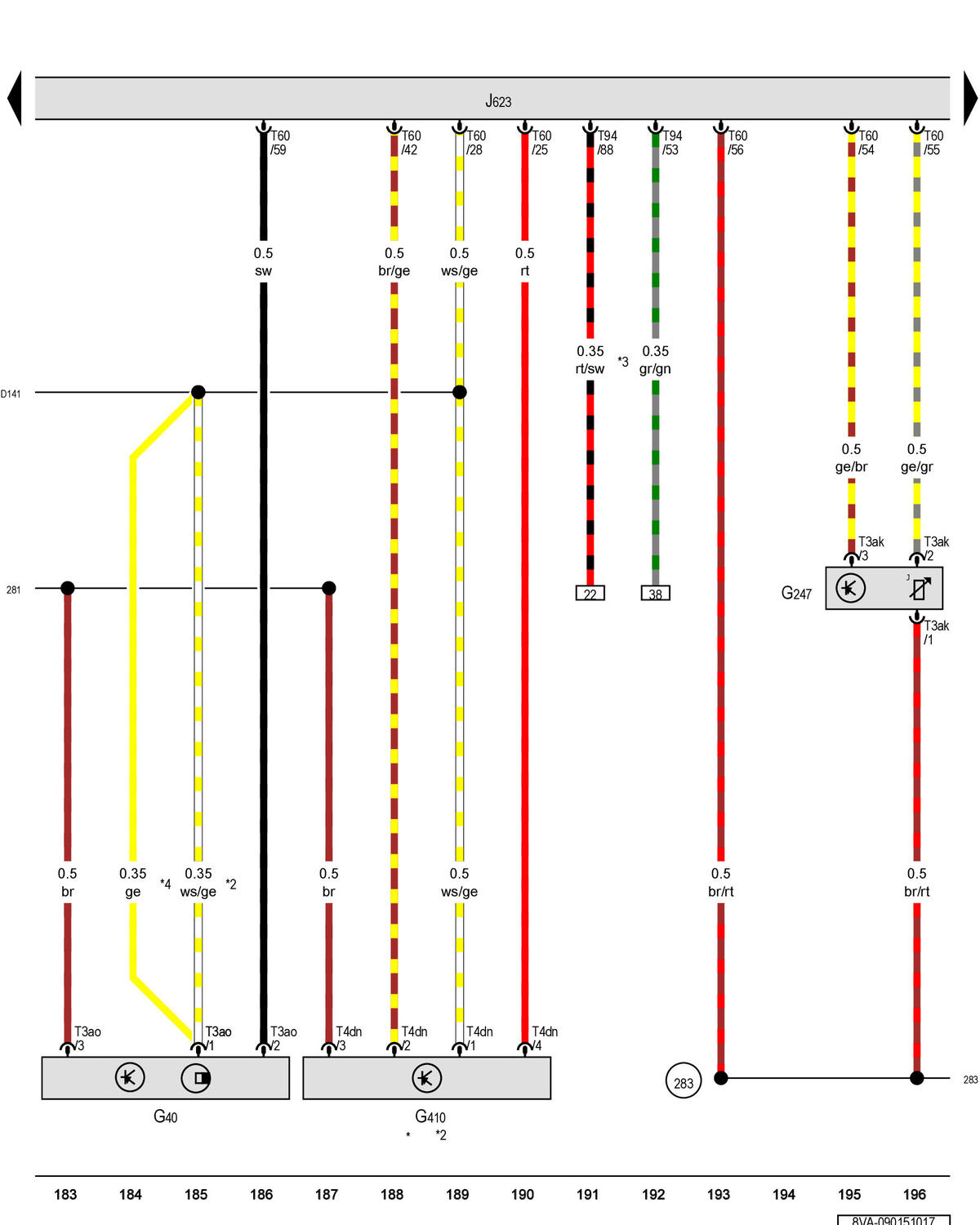

Camshaft Position Sensor, Fuel Pressure Sensor, Low Fuel Pressure Sensor, Engine/Motor Control Module
>>
Notes
Camshaft Position Sensor, Fuel Pressure Sensor, Low Fuel Pressure Sensor, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
