Wiring Diagram (CRUA, DEJA, DEJB) -- (A3 Sedan)
>>
Wiring Diagram(S)
>>

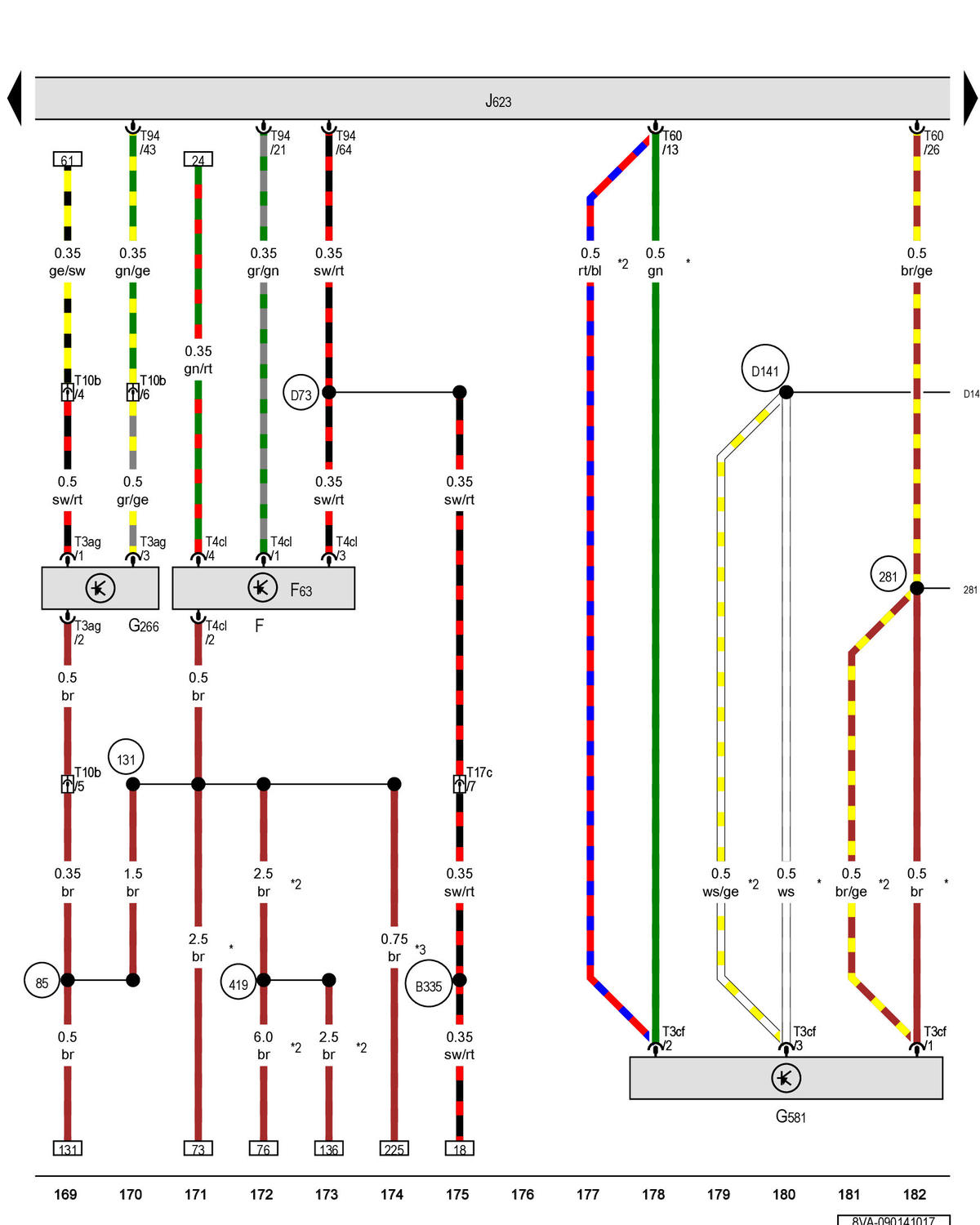

Brake Lamp Switch, Brake Pedal Switch, Oil Level Thermal Sensor, Charge Air Pressure Actuator Position Sensor, Engine/Motor Control Module
>>
Notes
Brake Lamp Switch, Brake Pedal Switch, Oil Level Thermal Sensor, Charge Air Pressure Actuator Position Sensor, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
