Overview - Front Backrest, Lumbar Support

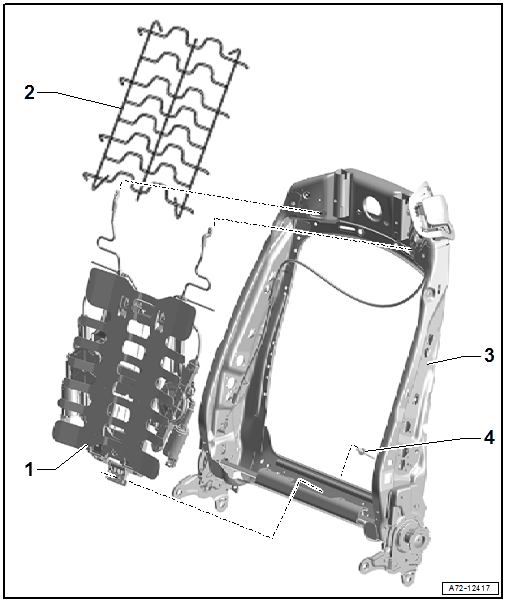

Fig 1: Exploded View Of Front Backrest, Lumbar Support
GWWA72-12417Courtesy of AUDI OF AMERICA, LLC
  1. Electro-Mechanical Lumbar Support
  2. Wire Mat
    • Equipped on some models: manual backrest adjustment without lumbar support
    • Engage on the backrest frame
    • Removing and Installing. Refer to WIRE MAT, REMOVING AND INSTALLING .
  3. Backrest Frame
  4. Rivet
