Wire Mat, Removing And Installing: Removing
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
-- If equipped, cut through the cable tie.

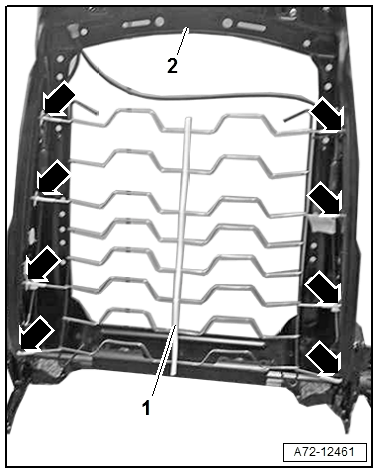

-- Unhook and remove the wire mat -1- on the backrest frame -2- at the locations shown in the image -arrows-.
