Overview - Driver Assistance Systems Front Camera

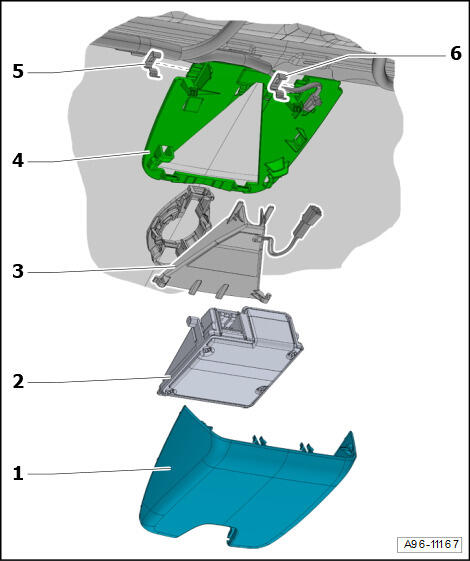

Fig 1: Driver Assistance Systems Front Camera (Version 1) Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Cover
2. Driver Assistance Systems Front Camera -R242-
   • Removing and installing. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, REMOVING AND INSTALLING .
3. Lens Shade
   • With heated windshield
   • Removing and installing. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, REMOVING AND INSTALLING .
4. Retaining Plate
   • Cannot be separated from the windshield
5. Retaining Clip
   • Replace after every removal
6. Retaining Clip
   • Replace after every removal
