Overview - Roof Trim Panel Controls: Notes

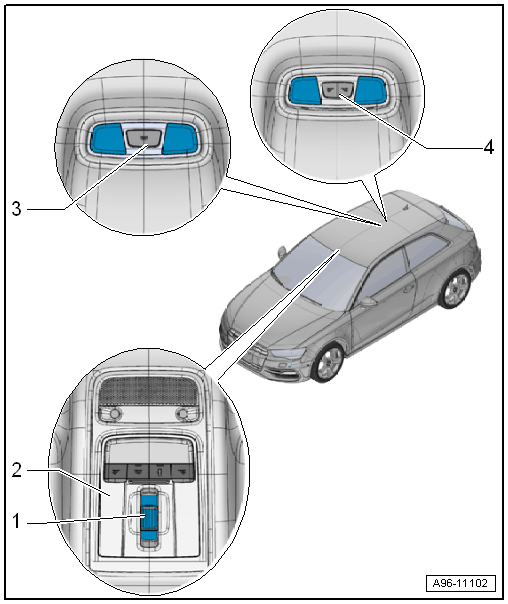

Fig 1: Locating Roof Trim Panel Controls

Courtesy of AUDI OF AMERICA, LLC

Sunroof Button -E325-
- Removing and installing. Refer to SUNROOF BUTTON -E325-, REMOVING AND INSTALLING .
Front Roof Module -WX3-
- There are different versions. Refer to the Parts Information.
- Replace the clip after removal
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Rear Interior Lamp
- "Basis"
- Removing and installing. Refer to REAR INTERIOR/READING LAMP, REMOVING AND INSTALLING .
Rear Interior Lamp
- "Comfort"
- Removing and installing. Refer to REAR INTERIOR/READING LAMP, REMOVING AND INSTALLING .
