Overview - Front Door Controls

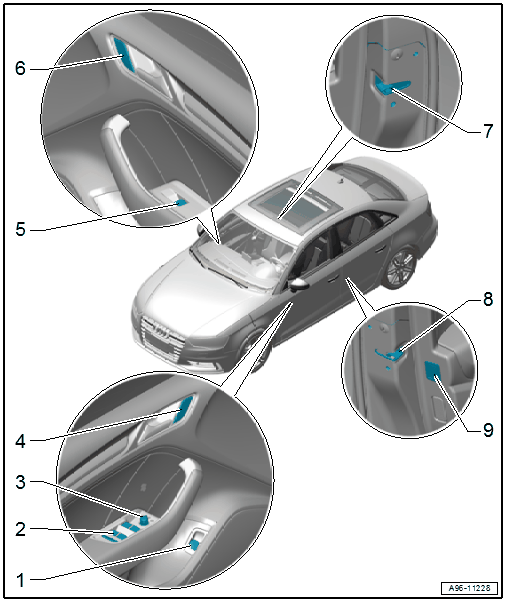

Fig 1: Locating Front Door Controls

Courtesy of AUDI OF AMERICA, LLC

Switch/Button
- Market-specific: Rear Lid Unlock Switch -E165-
- Vehicles with a high voltage system: Fuel Filler Door Release Button -E319-
- Removing and installing. Refer to REAR LID UNLOCK SWITCH -E165- /FUEL FILLER DOOR RELEASE BUTTON -E319-, REMOVING AND INSTALLING .
Power Window Control Head In Driver Door -E512-
- With:
  - Driver Power Window Button -E710-, Driver Side Rear Power Window Button In Driver Door -E712-, Passenger Side Rear Power Window Button In Driver Door -E714-, Front Passenger Power Window Button In Driver Door -E715-, Central Window Regulator Switch In Driver Door -E189-
- Removing and installing. Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR -E512-, REMOVING AND INSTALLING .
Mirror Adjusting Switch -E43- or Folding Mirror Adjustment Switch -E168-
- Removing and installing. Refer to MIRROR ADJUSTING SWITCH -E43- /FOLDING MIRROR ADJUSTMENT SWITCH -E168-, REMOVING AND INSTALLING .
Driver Interior Locking Button -E308-
- Removing and installing. Refer to DRIVER INTERIOR LOCKING BUTTON -E308-, REMOVING AND INSTALLING .
Front Passenger Power Window Button -E716-
- Removing and installing. Refer to FRONT PASSENGER POWER WINDOW BUTTON -E716-, REMOVING AND INSTALLING .
Front Passenger Interior Locking Button -E309-
- Removing and installing. Refer to DRIVER INTERIOR LOCKING BUTTON -E308-, REMOVING AND INSTALLING .
Front Passenger Door Contact Switch -F3-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replace the door lock. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Driver Door Contact Switch -F2-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replace the door lock. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Interior Monitoring And Vehicle Inclination Deactivation Button -E616-
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
