Front Passenger Power Window Button -E716-, Removing And Installing: Removing

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the insulation mat.

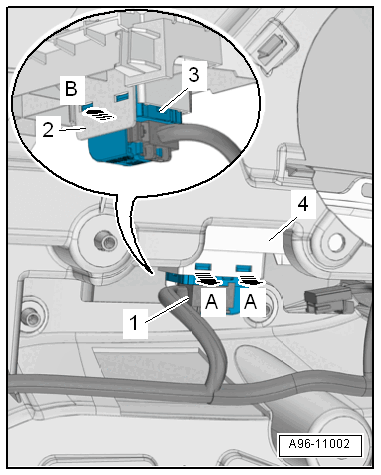

-- Carefully release the hooks in direction of -arrows A- with a small screwdriver.

GWWA96-11002Courtesy of AUDI OF AMERICA, LLC

-- Release the unlock button -2- in direction of -arrow B-.

-- Remove the window regulator switch -3- from the switch mount -4- and remove it to the rear.

-- Disconnect the connector -1-.
