ATF Level In Rear Final Drive 0BF And 0BE, Checking
Test requirement
- ATF temperature: 10°C to 60°C (50°F to 140°F)
- The rear final drive must be in its installed position.
- The vehicle must horizontal.
Special tools and workshop equipment required
- Catch tray
-- Remove the ATF inspection plug -1-.
CAUTION:

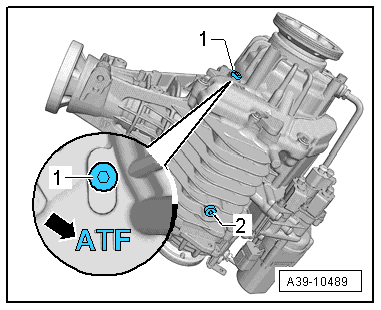

- The ATF check plug -1- is located on the left side of the rear final drive. >>ATF<< on the final drive housing -arrow-.
- Overview of the ATF plugs, refer to Figure.
- The ATF level is correct when the rear final drive is filled up to the lower edge of the fluid fill hole.
If the ATF level is correct:
-- Install and tighten the new ATF inspection plug. Tightening specification -item 12- REAR FINAL DRIVE OVERVIEW => List Item:ATF Check Plug.
If the ATF level is not correct:
-- Fill with ATF. Refer to ATF IN REAR FINAL DRIVE 0BF AND 0BE, FILLING .
