Fuel Pressure, Checking: Notes

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Pressure Tester Kit VAS 6550
Trim Removal Wedge 3409
Vehicle Diagnostic Tester
Pressure Tester Kit - Adapter Set - Hose 3 VAS 6550/3-3
Pressure Tester Kit - Adapter Set - Hose 4 VAS 6550/3-4

NOTE:

The connector couplings must >>audibly<< engage when locking.

Note the color coding when installing the coupling. Refer to CONNECTOR COUPLINGS, SEPARATING !

Pull on the connector coupling to make sure it is secure.

Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, SEPARATING .

Voltage supply OK.

NOTE:

Follow all safety precautions. Refer to SAFETY PRECAUTIONS .

Follow the guidelines for clean working conditions. Refer to PARKING/AUXILIARY HEATER AND FUEL SYSTEM CLEAN WORKING CONDITIONS .

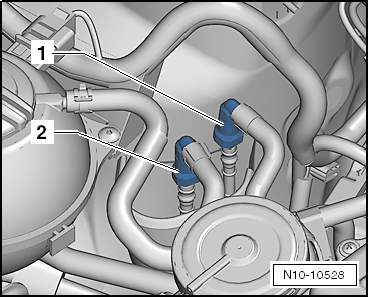

-- Disconnect the supply line (metal coupling) -1- and wipe up any leaking fuel with a cloth. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, SEPARATING .

Fig 1: Disconnecting Fuel Supply Line

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the Pressure Tester Kit - Hose 1 VAS 6550/1 to the connection -A- on the Pressure Tester Kit VAS 6550.

-- Connect the Pressure Tester Kit - Hose 1 VAS 6550/1 to the connection -B- on the Pressure Tester Kit VAS 6550.

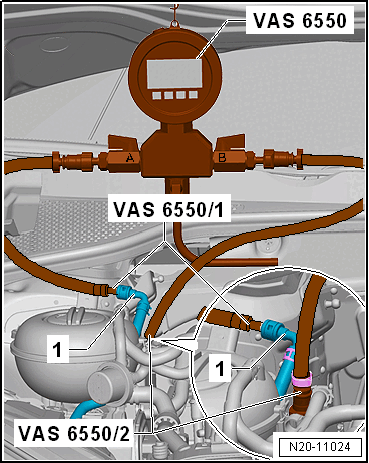

Fig 2: Identifying Pressure Tester Kit - Hose 1 VAS 6550/1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the Pressure Tester Kit - Hose 1 VAS 6550/1 to the fuel supply line -1- to the engine.

-- Connect the Pressure Tester Kit - Hose 2 VAS 6550/2 to the fuel line to the fuel tank.

-- Pull on the connector couplings to make sure they are secure.

-- Make sure that the drain valve -C- on the Pressure Tester (Diesel) -1- is shut.

Fig 3: Identifying Shut-Off Valves A And B On Pressure Tester Kit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The shut-off valves -A and B- on the Pressure Tester Kit -1- are opened.
