S3 Premium Plus
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>

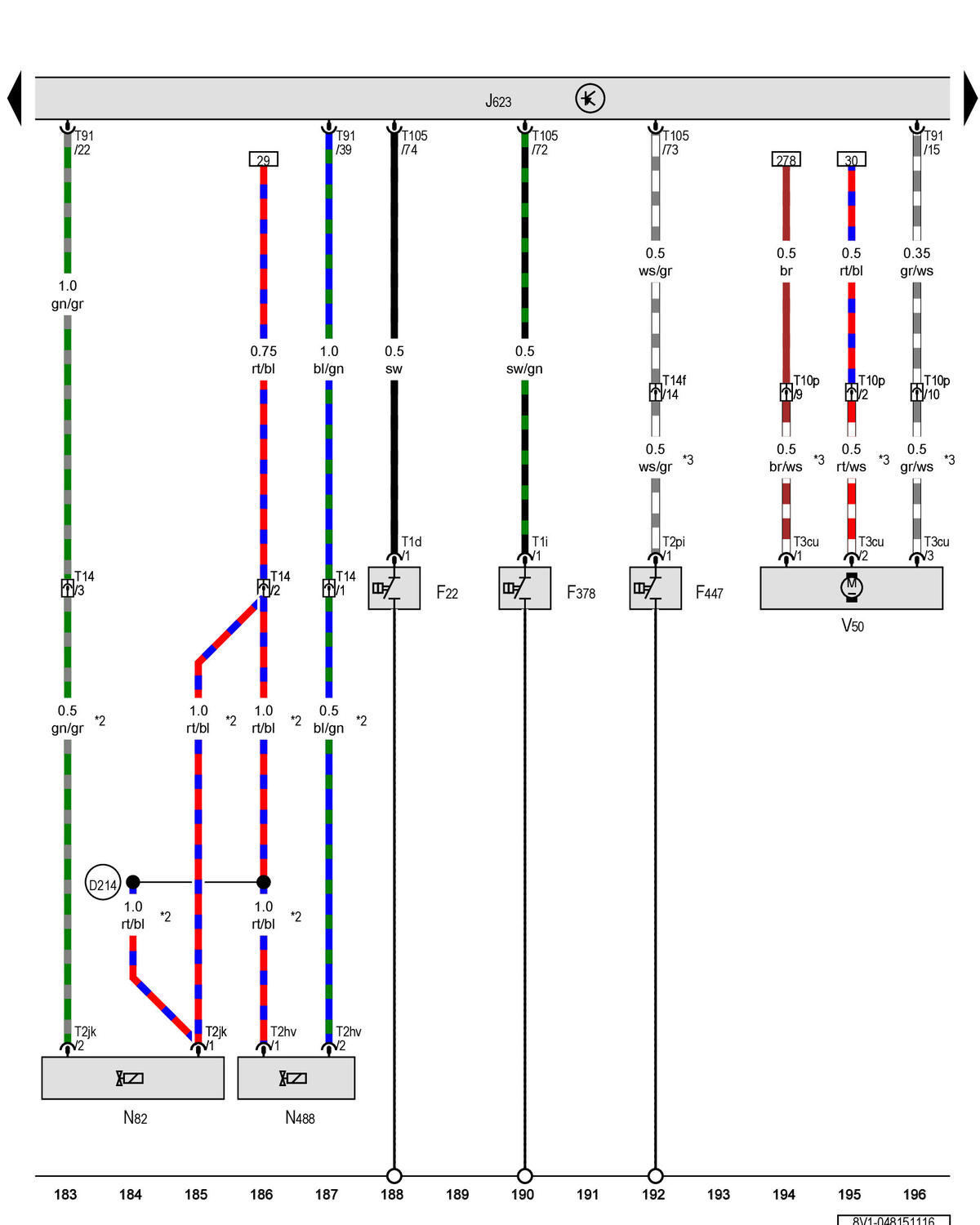

Wiring Diagram CALLOUTS [CHHB, CJXB, CJXC, CJXF, CNTC, CYFB] -- A3
>>
Wiring Diagram(S)
>>
Oil Pressure Switch, Reduced Oil Pressure Switch, Engine Control Module, Coolant Shut-Off Valve, Transmission Coolant Valve
>>
Notes
Oil Pressure Switch, Reduced Oil Pressure Switch, Engine Control Module, Coolant Shut-Off Valve, Transmission Coolant Valve: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
