Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
Wiring Diagram CALLOUTS [CHHB, CJXB, CJXC, CJXF, CNTC, CYFB] -- A3
>>
Wiring Diagram(S)
>>

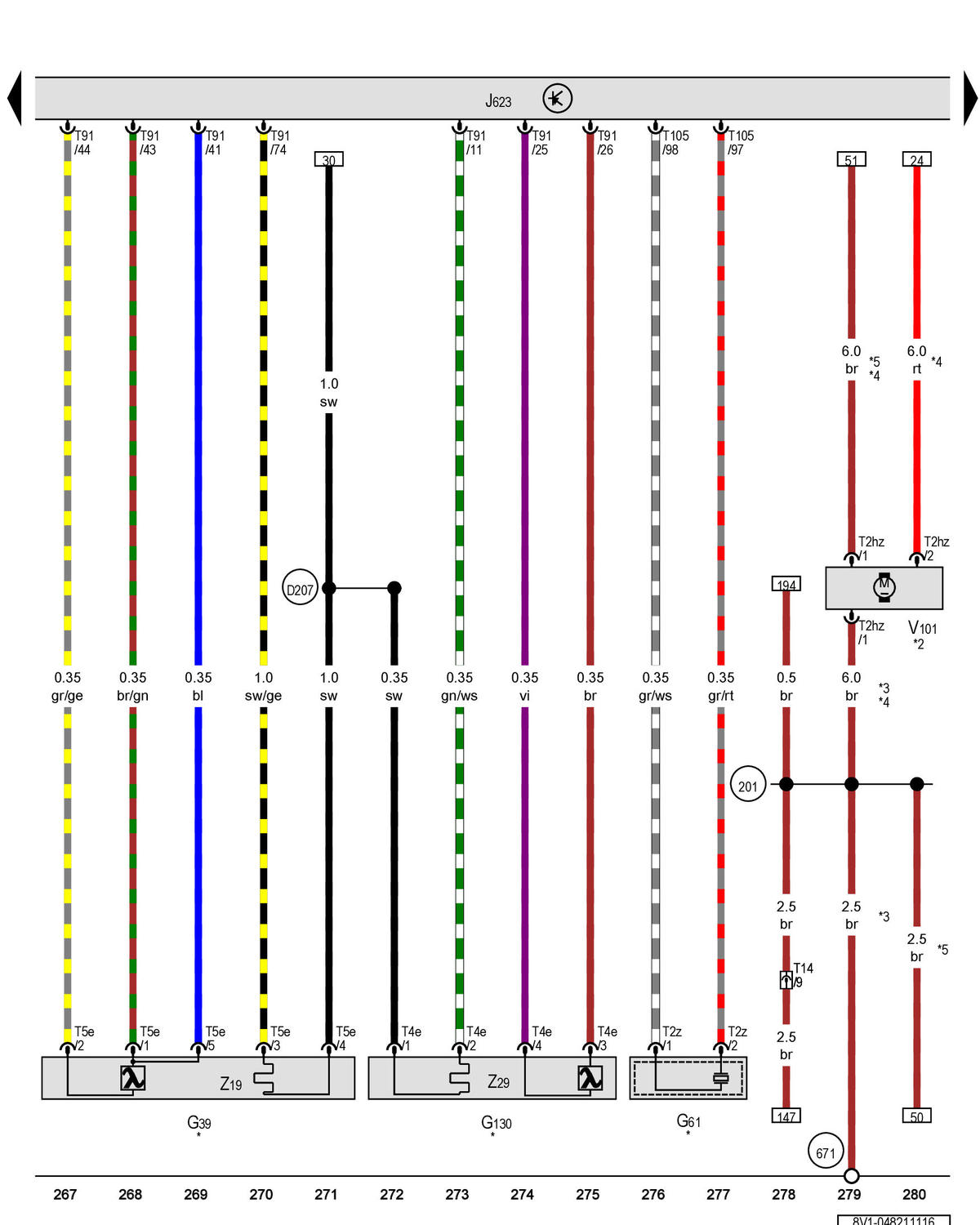

Heated Oxygen Sensor, Knock Sensor 1, Oxygen Sensor After Catalytic Converter, Engine Control Module, Secondary Air Injection Pump Motor
>>
Notes
Heated Oxygen Sensor, Knock Sensor 1, Oxygen Sensor After Catalytic Converter, Engine Control Module, Secondary Air Injection Pump Motor: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
