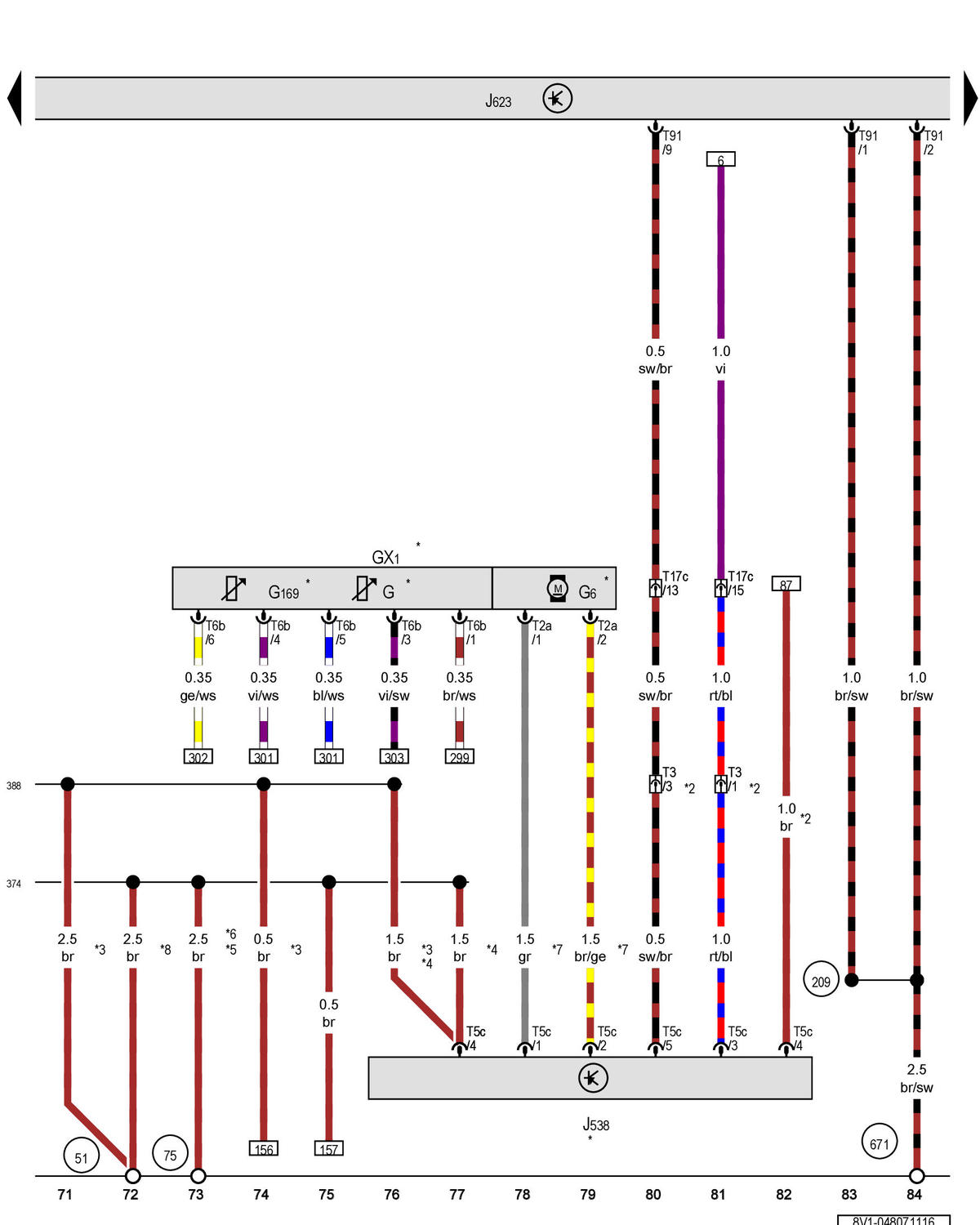

Fuel Level Sensor, Fuel Delivery Unit, Engine Control Module: Notes

GWW8V1-048071116

Courtesy of AUDI OF AMERICA, LLC
