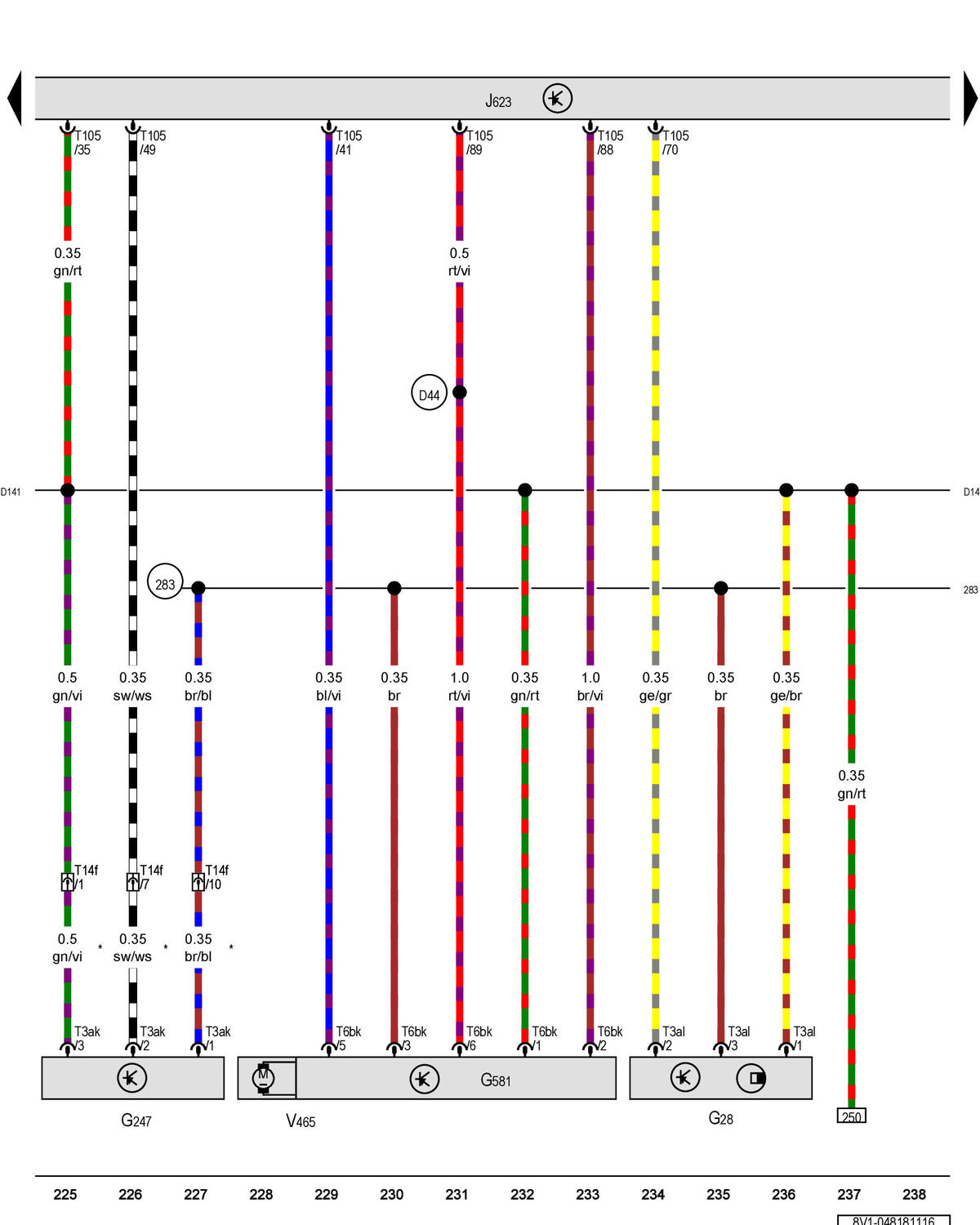

Engine Speed Sensor, Fuel Pressure Sensor, Engine Control Module, Charge Air Pressure Actuator: Notes

GWW8V1-048181116

Courtesy of AUDI OF AMERICA, LLC
