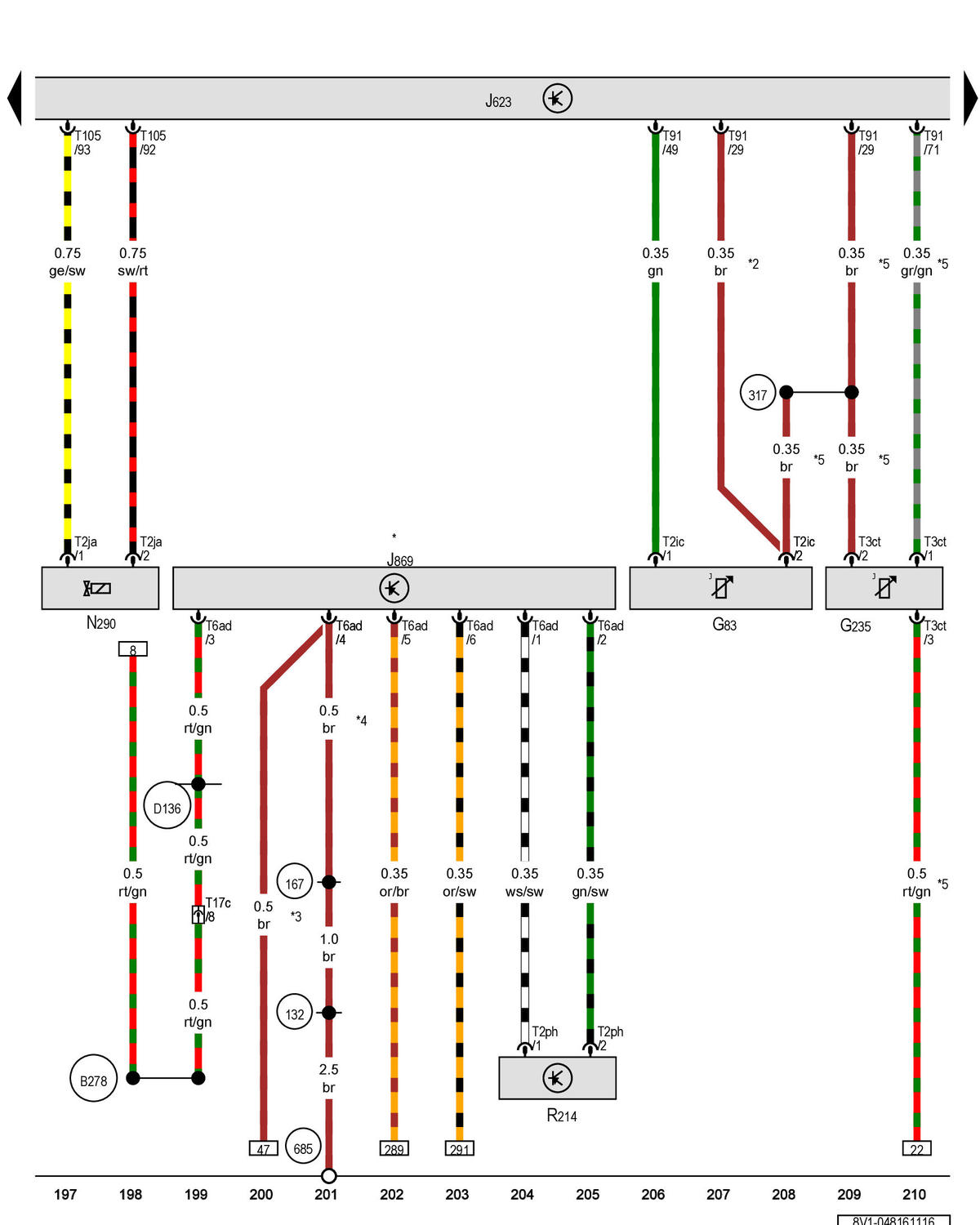

Engine Coolant Temperature Sensor On Radiator Outlet, Engine Control Module, Fuel Metering Valve: Notes

GWW8V1-048161116

Courtesy of AUDI OF AMERICA, LLC
