Home >> Audi >> 2015 >> S3 Premium Plus >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Wiring Diagram CALLOUTS [CHHB, CJXB, CJXC, CJXF, CNTC, CYFB] -- A3 >> Wiring Diagram(S) >> Camshaft Position Sensor, Engine Coolant Temperature Sensor, Camshaft Position Sensor 3, Intake Manifold Runner Position Sensor, Engine Control Module >> Notes

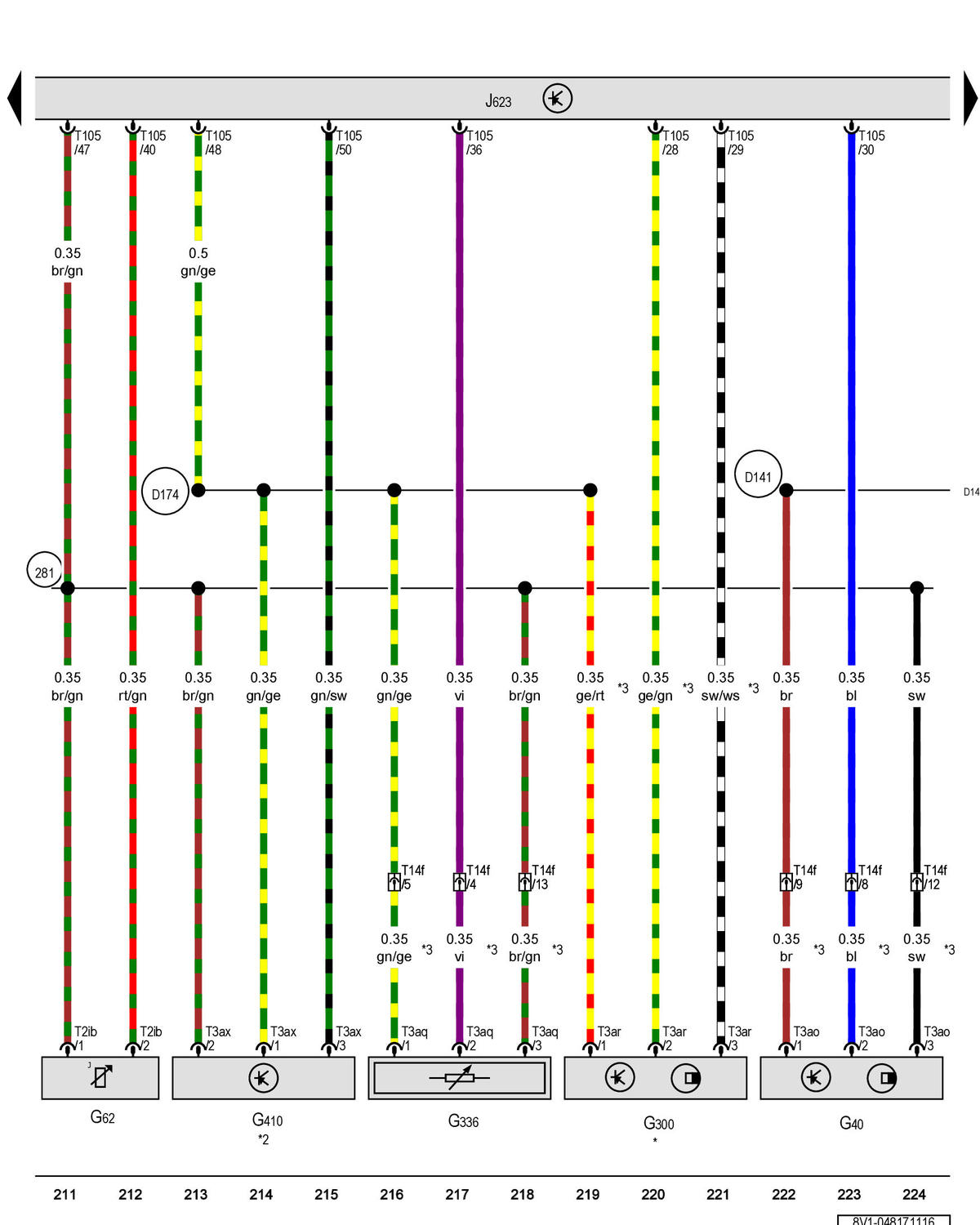

Camshaft Position Sensor, Engine Coolant Temperature Sensor, Camshaft Position Sensor 3, Intake Manifold Runner Position Sensor, Engine Control Module: Notes

GWW8V1-048171116

Courtesy of AUDI OF AMERICA, LLC
